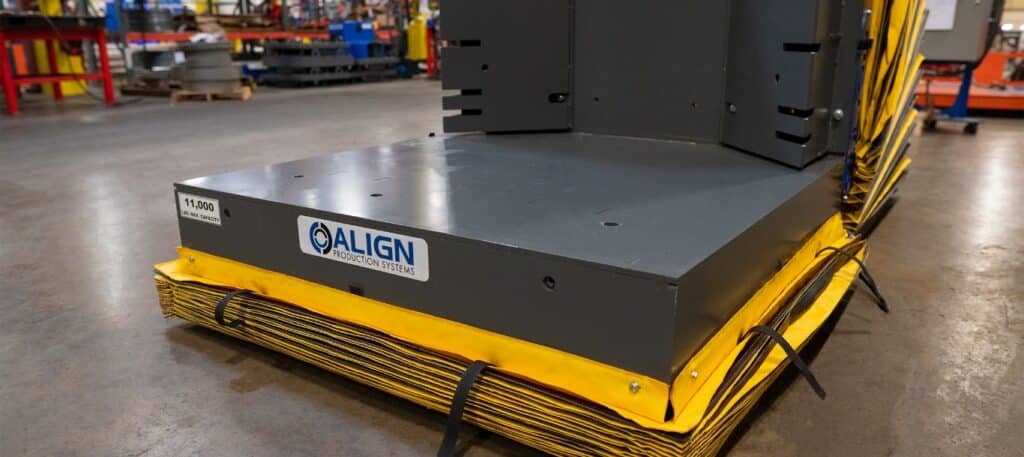

Hydraulic 90° Upenders

Tilt & Position

Prioritize worker safety by eliminating dangerous overhead crane maneuvers by using Hydraulic 90° Upenders in your assembly or fabrication operation.
Prioritize worker safety by eliminating dangerous overhead crane maneuvers by using Hydraulic 90° Upenders in your assembly or fabrication operation.
slider-left-arrow
slider-left-arrow
Video Library
Specs & Sizing
Features

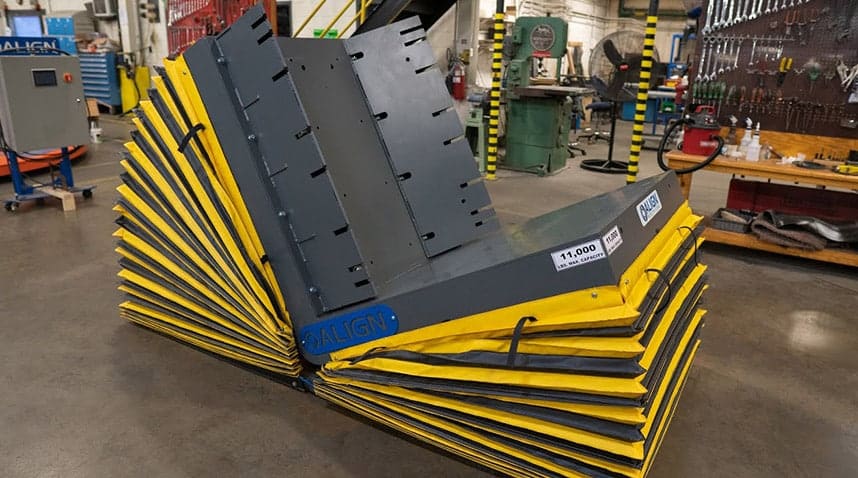

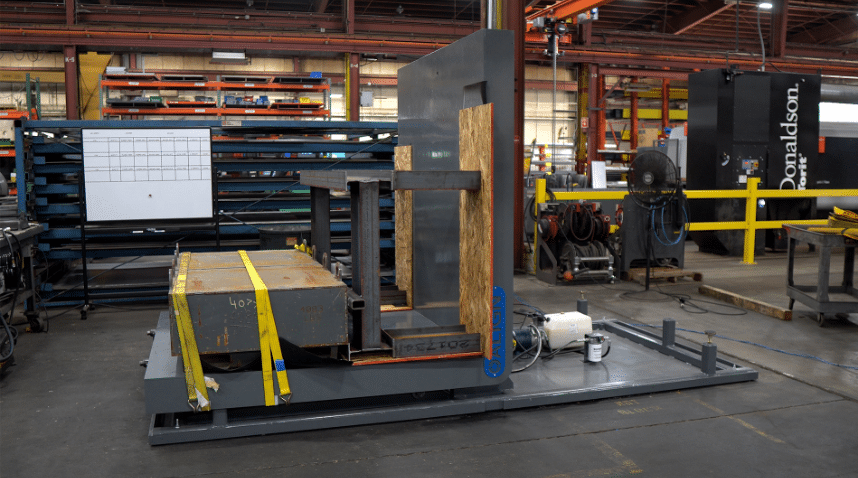

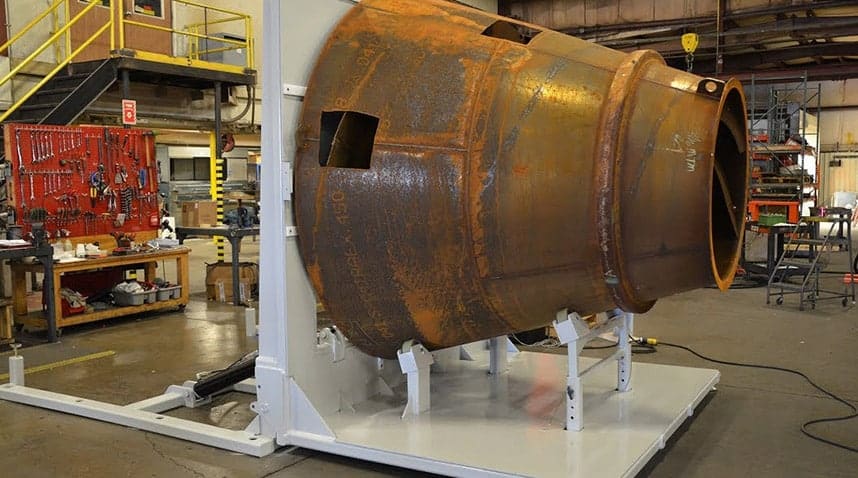

VIDEO LIBRARY : DEMO & APPLICATION

next-button next-button-hover
next-button next-button-hover

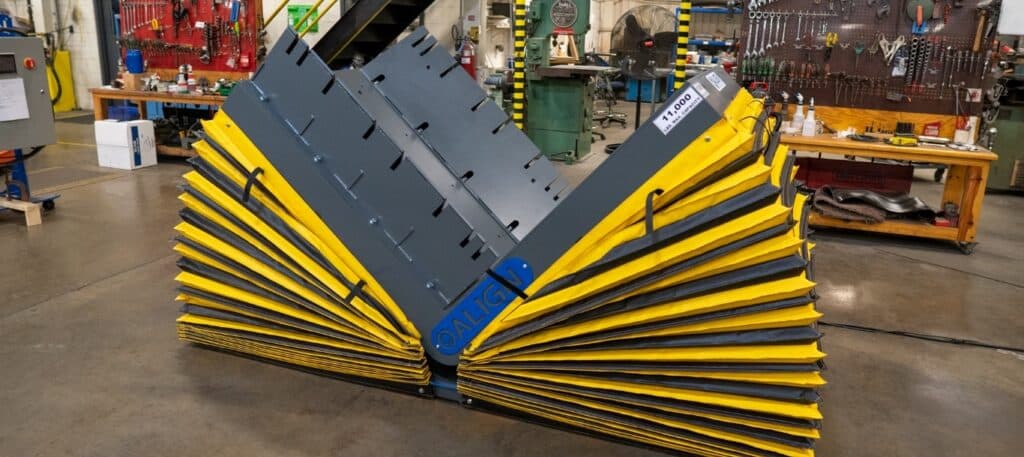

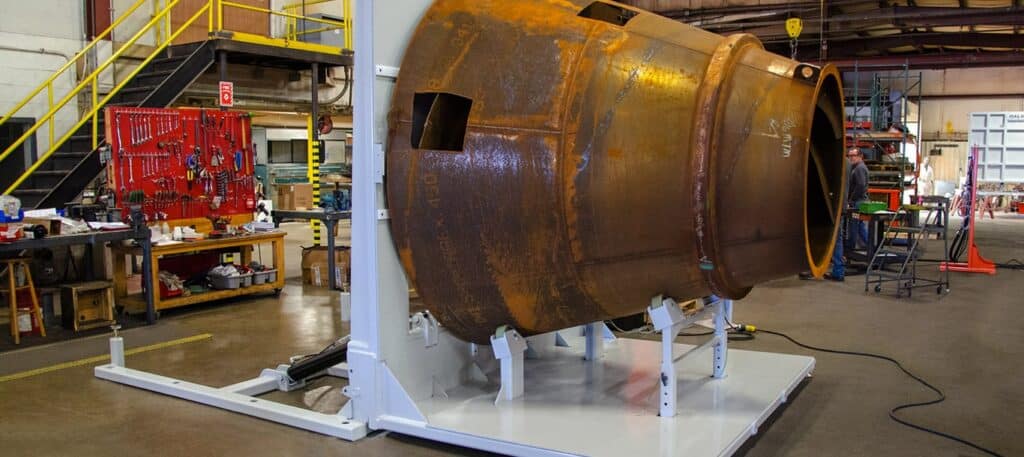

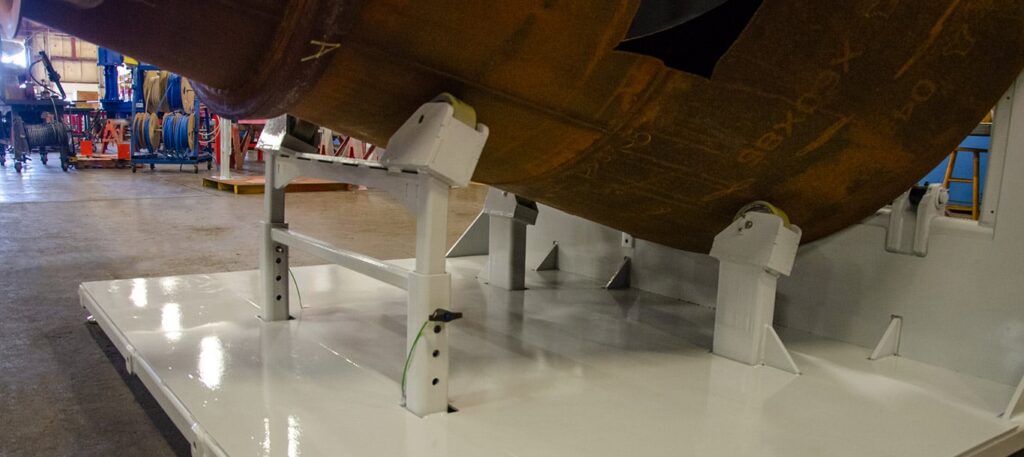

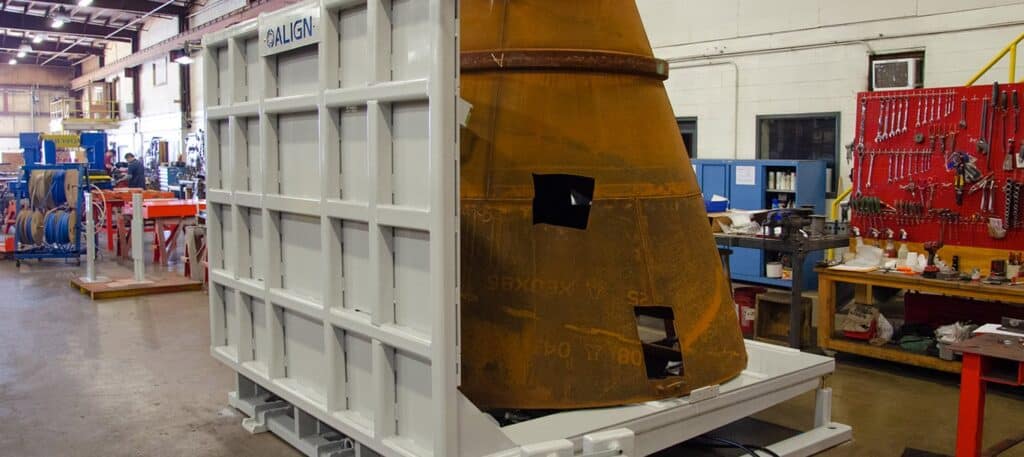

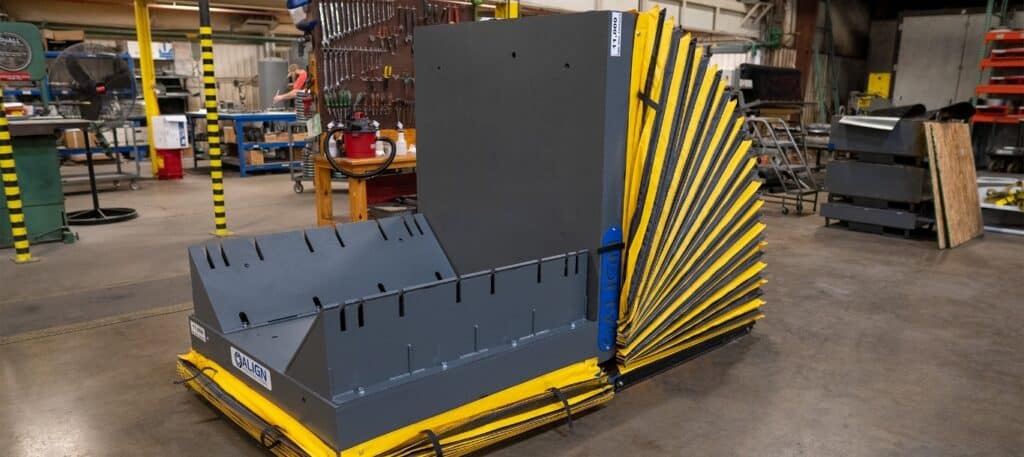

Our 90° Hydraulic Upenders are designed to flip heavy or large objects 90° to optimize your product’s fabrication or assembly with the push of a button. Upenders not only offer a safe way to flip products, but they also save substantial time over other methods of flipping products.

Product
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Cycle Time - 180 deg full (seconds)
Cycle Time - 180 deg full (seconds)
Model No.
Model No.
APS050-XXXXXX
APS050-XXXXXX
Capacity (lbs)
Capacity (kgs)
3,000
1,361
Length (in)
Length (mm)
36 - 96
914
Width (in)
Width (mm)
36 - 96
914
Height (in)
Height (mm)
12
305
Cycle Time (180 deg full)
Cycle Time (180 deg full)
30
30
Model No.
Model No.
APS051-XXXXXX
APS051-XXXXXX
Capacity (lbs)
Capacity (kgs)
6,000
2,722
Length (in)
Length (mm)
48 - 120
1,219
Width (in)
Width (mm)
36 - 120
914
Height (in)
Height (mm)
14
356
Cycle Time (180 deg full)
Cycle Time (180 deg full)
45
45
Model No.
Model No.
APS052-XXXXXX
APS052-XXXXXX
Capacity (lbs)
Capacity (kgs)
9,000
4,082
Length (in)
Length (mm)
60 - 120
1,524
Width (in)
Width (mm)
36 - 120
914
Height (in)
Height (mm)
16
406
Cycle Time (180 deg full)
Cycle Time (180 deg full)
60
60
Model No.
Model No.
APS053-XXXXXX
APS053-XXXXXX
Capacity (lbs)
Capacity (kgs)
12,000
5,443
Length (in)
Length (mm)
60 - 120
1,524
Width (in)
Width (mm)
60 - 120
1,219
Height (in)
Height (mm)
18
457
Cycle Time (180 deg full)
Cycle Time (180 deg full)
75
75

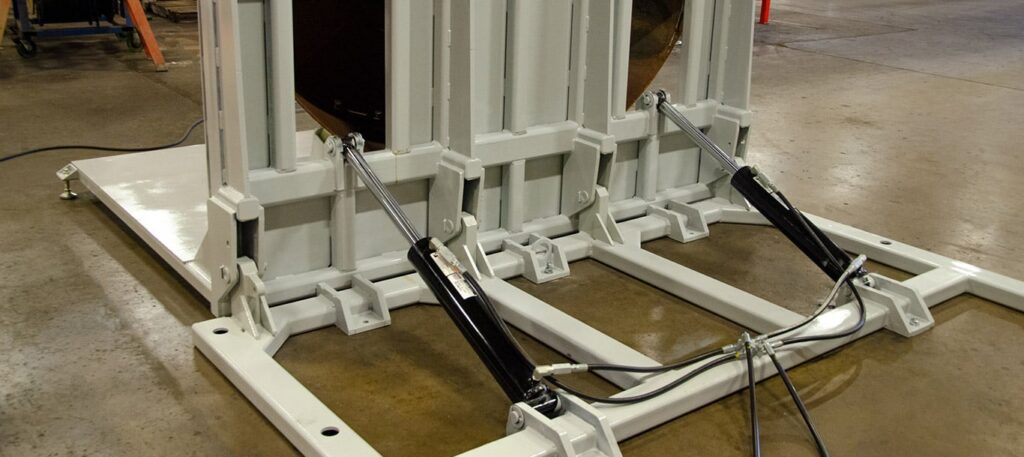

Counterbalance Valve
Also known as a load holding valve, the valve safely holds suspended loads in position and prevents run-away or overrunning loads.
Adjustable Leveling Pads
Adjustable leveling pads for leveling upender deck in the 0° and 90° positions.
Safe &
Time-Saving
Upenders not only offer a safe way to flip products, but they also save substantial time over other methods of flipping products.
Looking for a customized solution? We do that too.
Request a Free Consultation
Frequent Questions
I need to weld something with a higher capacity than what’s rated on this product.

No worries. We offer custom engineering and designing to match product specifications to your needs. Contact us at 800-888-0018 to speak with us about custom solutions.

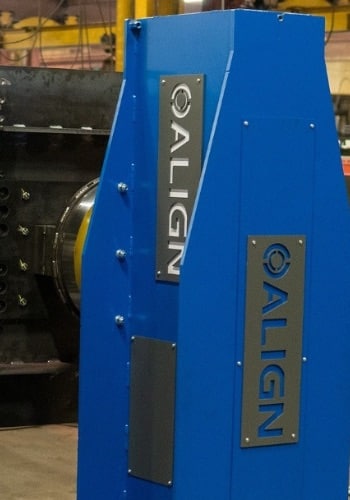

What is the difference between the various Head & Tailstock Positioners?

To find the right positioner for your needs, take into consideration the weight of your weldment and understand the features of each of our positioners. The Adjustable Head & Tailstock is our most advanced positioner with height adjustment in addition to weldment rotation while the
