Heavy Duty Mechanical Turntables

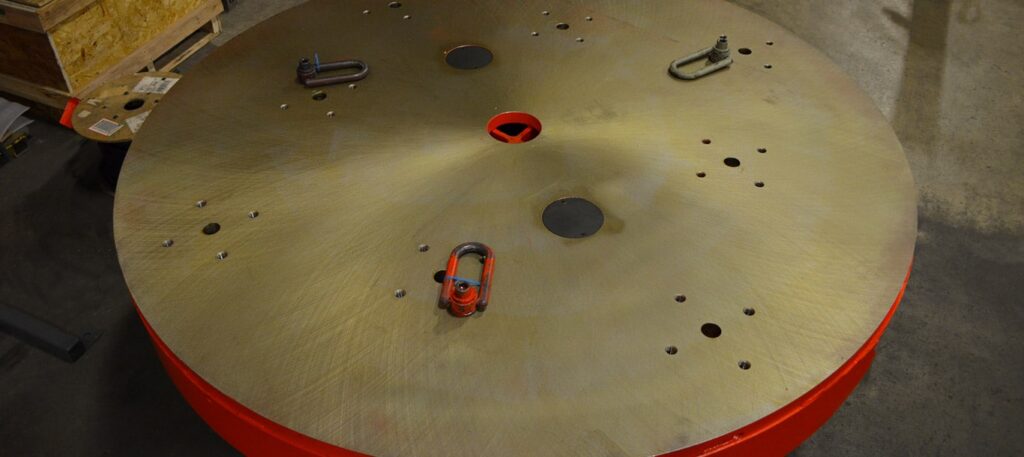

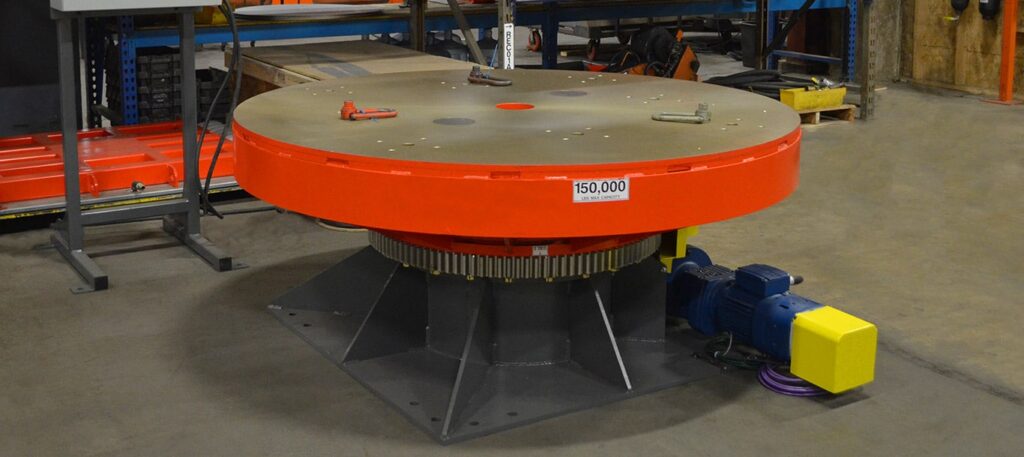

Our Heavy Duty Mechanical Turntables are designed to withstand the toughest industrial environments making them a versatile and reliable solution. They offer impressive weight capacities, standard up to 150,000 lbs, with custom options available. With a low-maintenance design that minimizes downtime, they include an optional automatic lubrication system for smooth, low-friction operation. Ideal for continuous or cycle-on-demand applications, they can also be customized to meet specific load requirements.
View More Photos
Looking for a customized solution? We do that too.
Request a Free Consultation
Product
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Base Length (in)
Base Length (mm)
|
Base Width (in)
Base Width (mm)
|
Top Diameter Min (in)
Top Diameter Min (mm)
|
Height (in)
Height (mm)
|
RPM
RPM
|
Accuracy (deg)
Accuracy (deg)
|
|---|---|---|---|---|---|---|---|
|
Model No.
Model No.
AX010-060
AX010-060
|
Capacity (lbs)
Capacity (kgs)
150,000
68,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
60
1,524
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-072
AX010-072
|
Capacity (lbs)
Capacity (kgs)
150,000
68,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
72
1,829
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-084
AX010-084
|
Capacity (lbs)
Capacity (kgs)
150,000
68,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
84
2,134
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-096
AX010-096
|
Capacity (lbs)
Capacity (kgs)
125,000
56,500
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
96
2,438
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-108
AX010-108
|
Capacity (lbs)
Capacity (kgs)
100,000
45,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
108
2,743
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-120
AX010-120
|
Capacity (lbs)
Capacity (kgs)
100,000
45,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
120
3,048
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
|
Model No.
Model No.
AX010-048
AX010-048
|
Capacity (lbs)
Capacity (kgs)
150,000
68,000
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
50
1,270
|
Top Diameter Min (in)
Top Diameter Min (mm)
48
1,219
|
Height (in)
Height (mm)
31
787
|
RPM
RPM
0 - 1
0 - 1
|
Accuracy (deg)
Accuracy (deg)
0.3°
0.3°
|
Overcome Obstacles.
Maximize Production.
Maximize Production.
Request a Quote
High
Capacity
Capacity

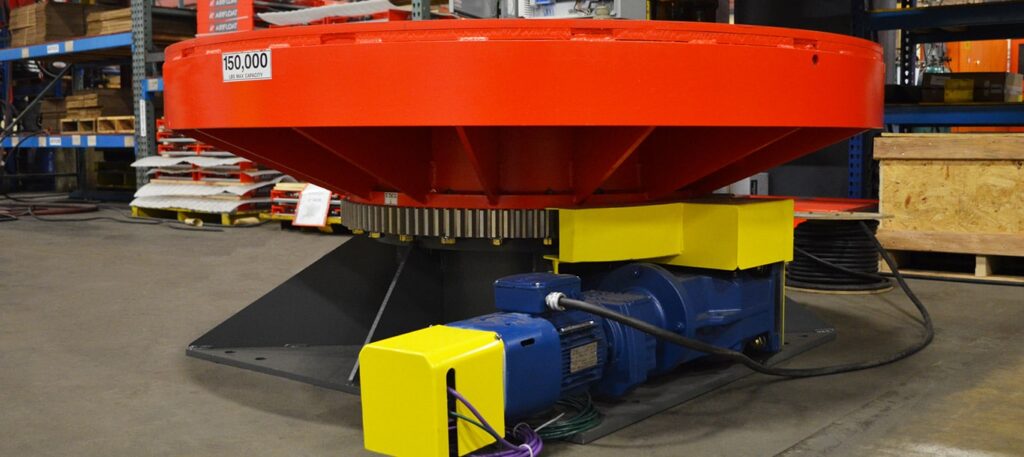

Our Heavy Duty line of Mechanical Turntables are our highest capacity turntables, reaching upwards of 150,000 lbs. and beyond. The turntables are useful for outdoors, areas without an air supply, or if you simply need the most heavy duty turntable available.
Low
Maintenance
Maintenance
We’ve designed our Mechanical Turntables to minimize wear and potential downtime by engineering the tables with a minimal amount of moving parts inside - creating a long lasting product that keeps your facility working at a high efficiency.
Slewing
Drive
Drive

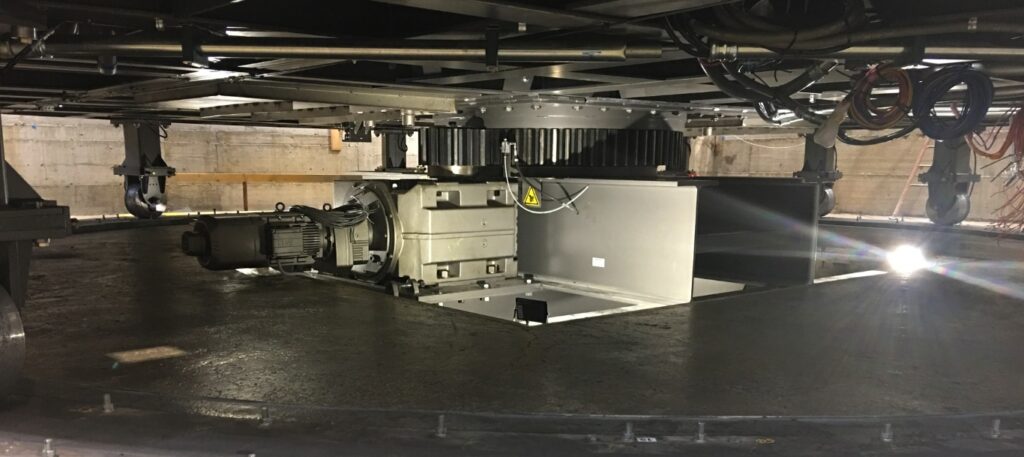

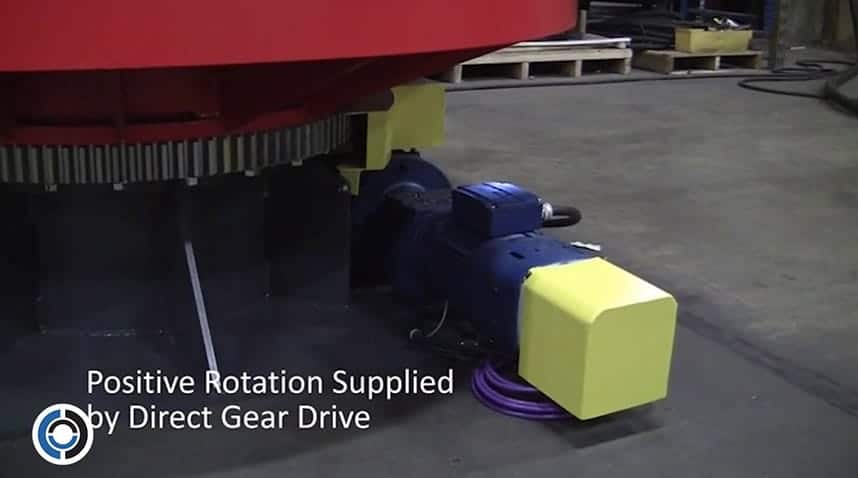

Our products are durable withstanding manufacturing environments, our Mechanical Turntables have a high-performance slewing drive that can handle rigorous operation - all while being overly accurate with an optional shot pin.

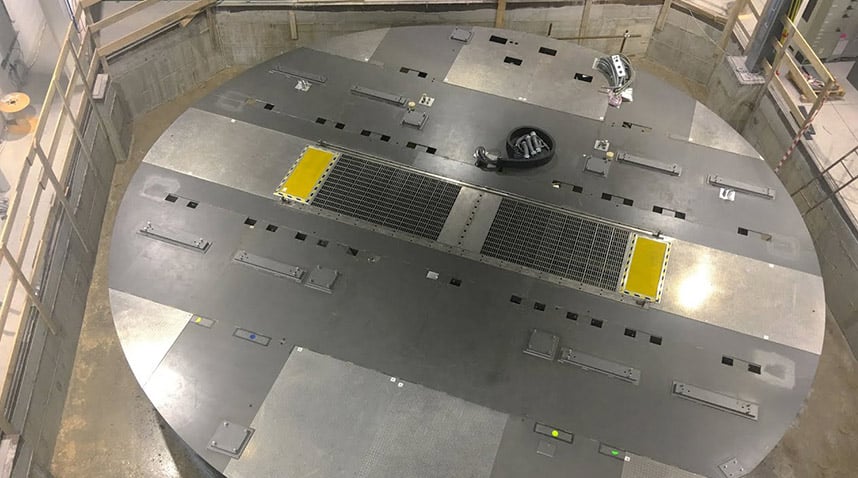

Video Library : Demo & Application
What’s the difference between a Mechanical Turntable and an Air Caster Turntable?
Mechanical Turntables can be used in environments without an air supply as required by our Air Caster Turntables. They’re also great for outdoor areas or situations where the ability to run for an extended amount of time is necessary.
I don’t see the weight capacity that I need.
We offer a wide array of standard capacities, but we offer custom engineering and designing to ensure that we can meet your needs. Give us a call at 800.818.0088 to speak with someone about a customized solution.
What maintenance can I expect for Mechanical Turntables?
The maintenance for mechanical turntables includes:
- Monthly inspection for structural cracks, loose bolts, and concrete legs for tightness.
- Inspection of wires for looseness.
- Checking the oil level in the gear motor.
- Annual greasing of the slew bearing.
Tabletop hatches provide access to internal components, simplifying maintenance without the need for full disassembly
Large turntables can be costly to ship. What can I expect for shipping?
Our mechanical turntables are designed to break down into 5 main parts for easy transportation and setup.
