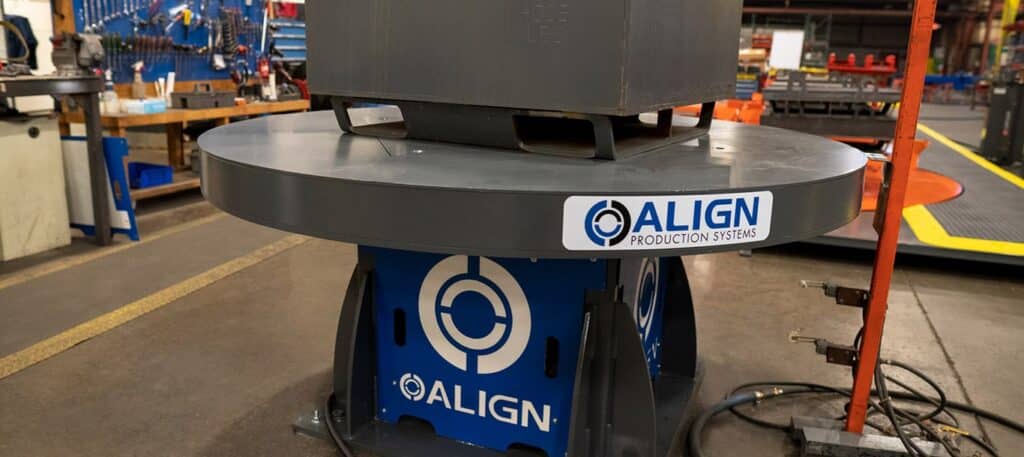

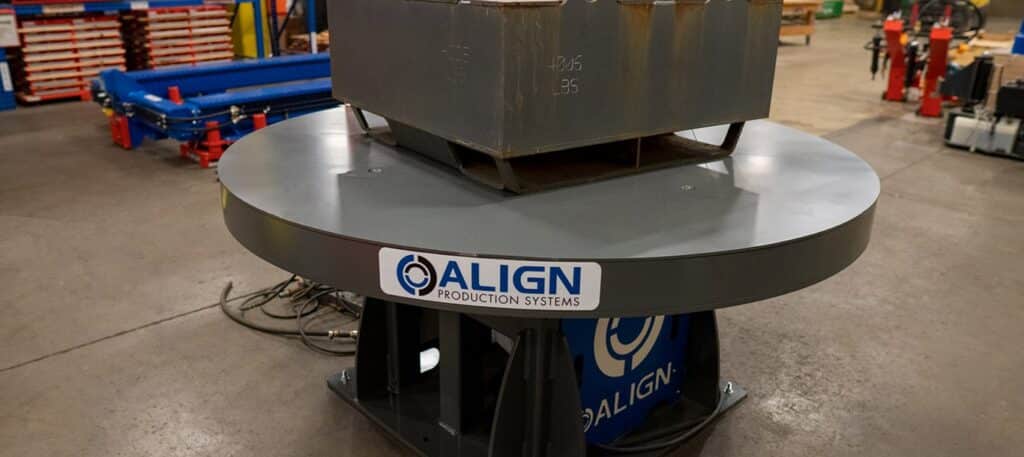

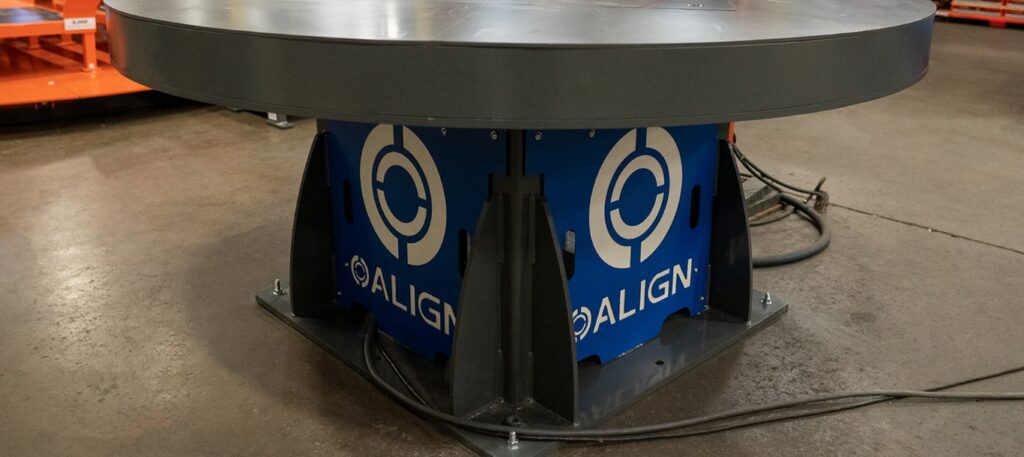

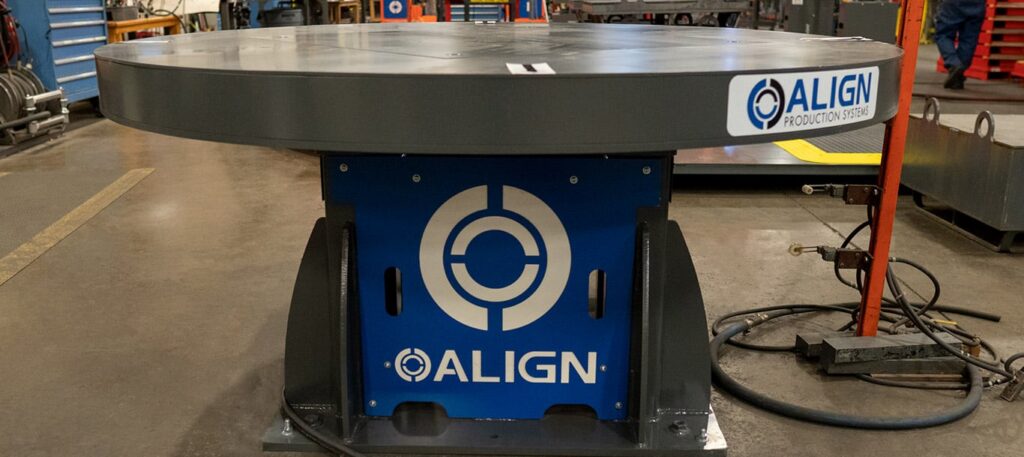

High Precision Mechanical Turntable
Video Library
Specs & Sizing
Features

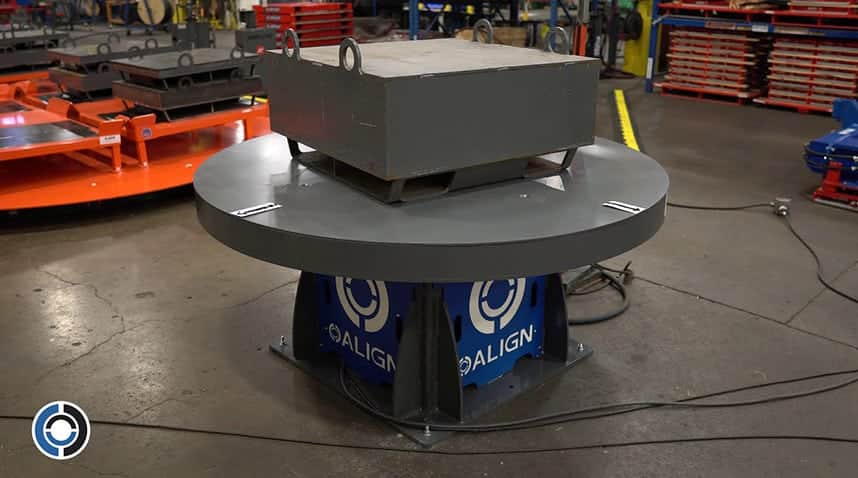

Video Library : Demo & Application
The table is accurate up to 0.01” and boasts a weight capacity up to 5,000 lbs. It can be easily integrated into existing or future work cells thanks to its compatibility with all major robotic controllers. Customizable round and rectangular tops are available from 60” up to 120”.
Round Turntables
Square Turntables
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Base Length (in)
Base Length (mm)
|
Base Width (in)
Base Width (mm)
|
Top Diameter (in)
Top Diameter (mm)
|
Height (in)
Height (mm)
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
|
|---|---|---|---|---|---|---|---|---|---|
|
Model No.
Model No.
ROUND APS070-0120
ROUND APS070-0120
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
120
3,048
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
7
7
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.042°
0.042°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
ROUND APS070-0108
ROUND APS070-0108
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
108
2,743
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
6.5
6.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.046°
0.046°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
ROUND APS070-0096
ROUND APS070-0096
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
96
2,438
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
6
6
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.050°
0.050°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
ROUND APS070-0084
ROUND APS070-0084
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
84
2,134
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
5.5
5.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.054°
0.054°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
ROUND APS070-0072
ROUND APS070-0072
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
72
1,829
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
4.5
4.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.059°
0.059°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
ROUND APS070-0060
ROUND APS070-0060
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top Diameter (in)
Top Diameter (mm)
60
1,524
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
4.5
4.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.066°
0.066°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
Square Turntables
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Base Length (in)
Base Length (mm)
|
Base Width (in)
Base Width (mm)
|
Top L/D Min (in)
Top L/D Min (mm)
|
Top L/D Max (in)
Top L/D Max (mm)
|
Height (in)
Height (mm)
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Model No.
Model No.
SQUARE APS071-0096
SQUARE APS071-0096
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
84
2,134
|
Top L/D Max (in)
Top L/D Max (mm)
96
96
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
6
6
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.050°
0.050°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
SQUARE APS071-0084
SQUARE APS071-0084
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
72
1,829
|
Top L/D Max (in)
Top L/D Max (mm)
84
84
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
5.5
5.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.054°
0.054°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
SQUARE APS071-0072
SQUARE APS071-0072
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
60
1,524
|
Top L/D Max (in)
Top L/D Max (mm)
72
72
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
5
5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.059°
0.059°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
SQUARE APS071-0060
SQUARE APS071-0060
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
40
1,016
|
Top L/D Max (in)
Top L/D Max (mm)
60
60
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
4.5
4.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.066°
0.066°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
SQUARE APS071-0120
SQUARE APS071-0120
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
108
2,743
|
Top L/D Max (in)
Top L/D Max (mm)
120
120
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
7
7
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.042°
0.042°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
|
Model No.
Model No.
SQUARE APS071-0108
SQUARE APS071-0108
|
Capacity (lbs)
Capacity (kgs)
5,000
2,268
|
Base Length (in)
Base Length (mm)
40
1,016
|
Base Width (in)
Base Width (mm)
40
1,016
|
Top L/D Min (in)
Top L/D Min (mm)
96
2,438
|
Top L/D Max (in)
Top L/D Max (mm)
108
108
|
Height (in)
Height (mm)
38
965
|
Fastest Cycle Time (seconds)
Fastest Cycle Time (seconds)
6.5
6.5
|
Standard Cycle Time (seconds)
Standard Cycle Time (seconds)
10
10
|
Accuracy - Fast (deg)
Accuracy - Fast (deg)
0.046°
0.046°
|
Accuracy - Standard (deg)
Accuracy - Standard (deg)
0.018°
0.018°
|
High Accuracy
Offers high speed accuracy of ≤ 0.01” (0.254mm) at table edge, meeting the demands that are required for robotic applications.
Easy to Maintain
All major components can be easily maintained and replaced from central maintenance hatch and side mounted auxiliary cover plates.
Integration
The turntable can be easily integrated into existing or future working cells and compatible with all major robotic controllers.
