Pneumatic Pallet Jack

Efficient Pallet Transportation

Effortlessly move and position pallets weighing up to 15,000 lbs. with an Align Production Systems Heavy-Duty Pneumatic Pallet Jack.
Effortlessly move and position pallets weighing up to 15,000 lbs. with an Align Production Systems Heavy-Duty Pneumatic Pallet Jack.
slider-left-arrow
slider-left-arrow
VIDEO LIBRARY
Specs & Sizing
Features

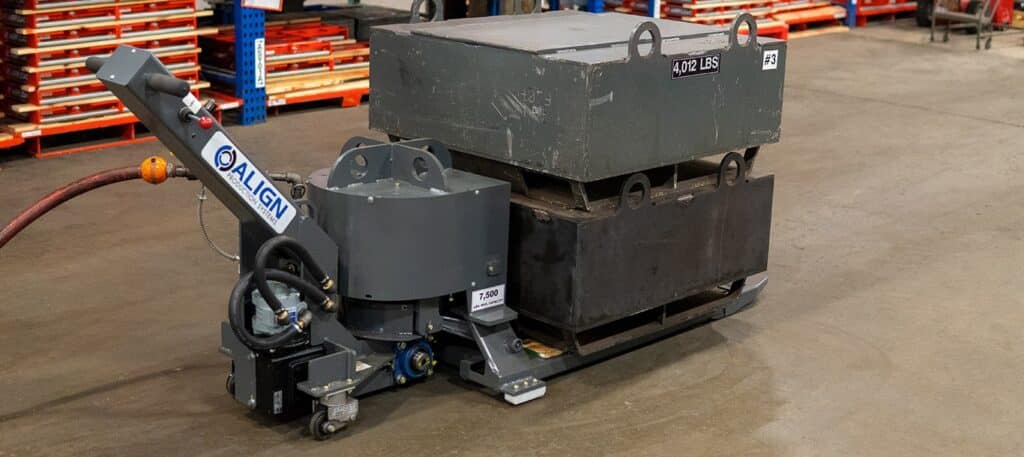

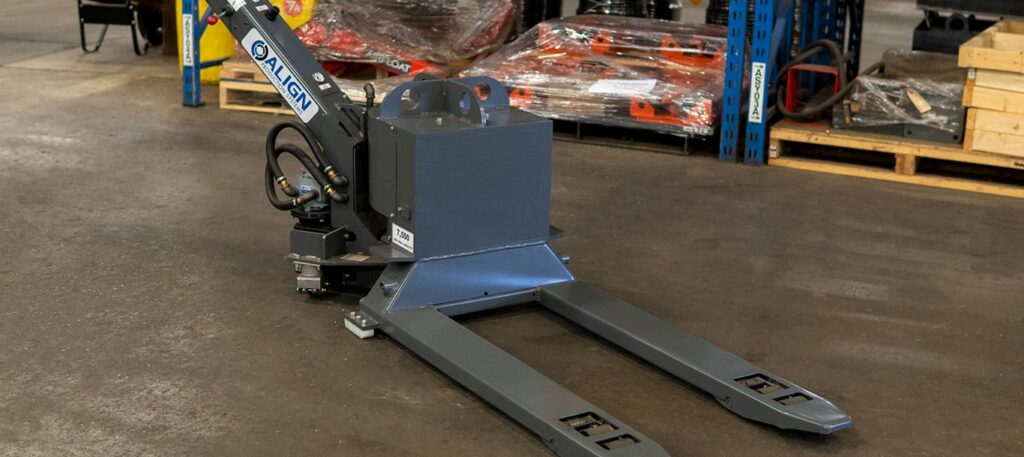

Pneumatic Pallet Jack

Our Pneumatic Pallet Jacks are made to last, featuring full steel construction, and all-pneumatic operation to minimize downtime and part replacement. Because our units are all pneumatic and have no electronic parts, they offer spark free operation and reduce risk, making them ideal for environments with flammable elements.

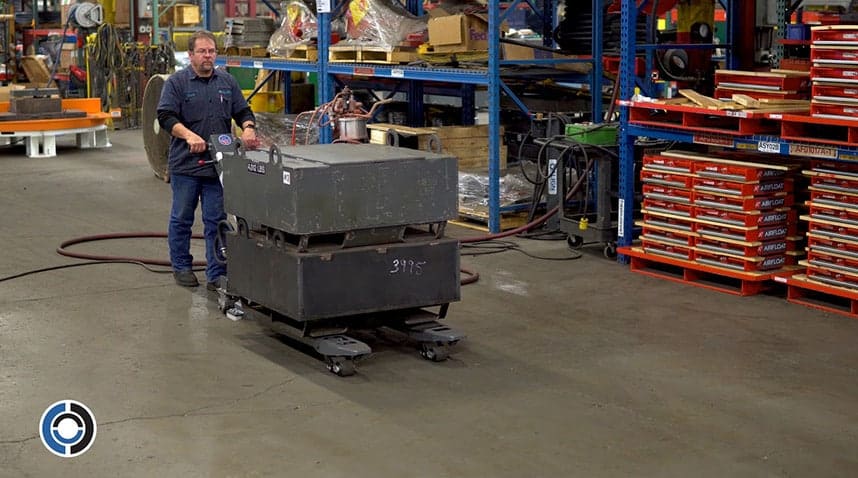

VIDEO LIBRARY : DEMO & APPLICATION

next-button next-button-hover
next-button next-button-hover



Product
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Speed (fpm)
Speed (mpm)
Fork Length (in)
Fork Length (mm)
Fork Width (in)
Fork Width (mm)
Lowered Fork Height (in)
Lowered Fork Height (mm)
Raised Fork Height (in)
Raised Fork Height (mm)
Model No.
Model No.
ST040-7500
ST040-7500
Capacity (lbs)
Capacity (kgs)
7,500
3,402
Speed (fpm)
Speed (mpm)
50
15
Fork Length (in)
Fork Length (mm)
48
1219
Fork Width (in)
Fork Width (mm)
27
686

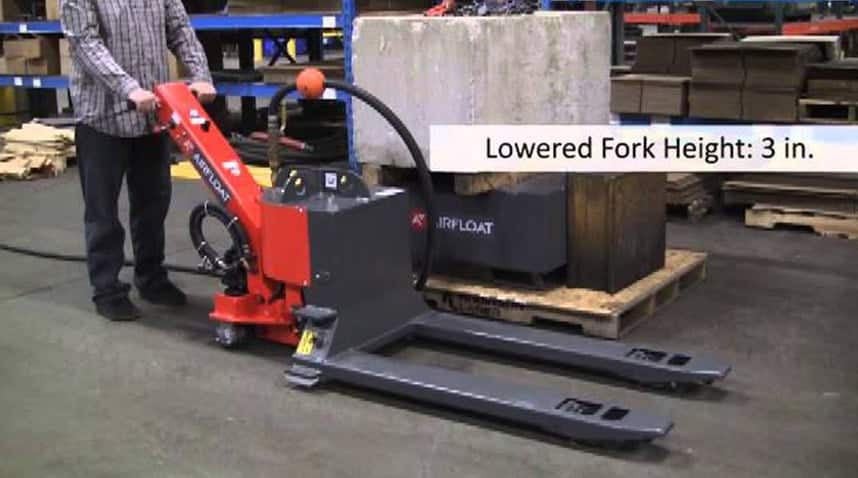

Lowered Fork Height (in)
Lowered Fork Height (mm)
3
76
Raised Fork Height (in)
Raised Fork Height (mm)
6 3/4
171
Model No.
Model No.
ST040-1500
ST040-1500
Capacity (lbs)
Capacity (kgs)
15,000
6,804
Speed (fpm)
Speed (mpm)
40
12
Fork Length (in)
Fork Length (mm)
73 1/2
1867
Fork Width (in)
Fork Width (mm)
32 1/4
819
Lowered Fork Height (in)
Lowered Fork Height (mm)
5 1/4
133
Raised Fork Height (in)
Raised Fork Height (mm)
7 1/4
184
Looking for a customized solution? We do that too.
Request a Free Consultation

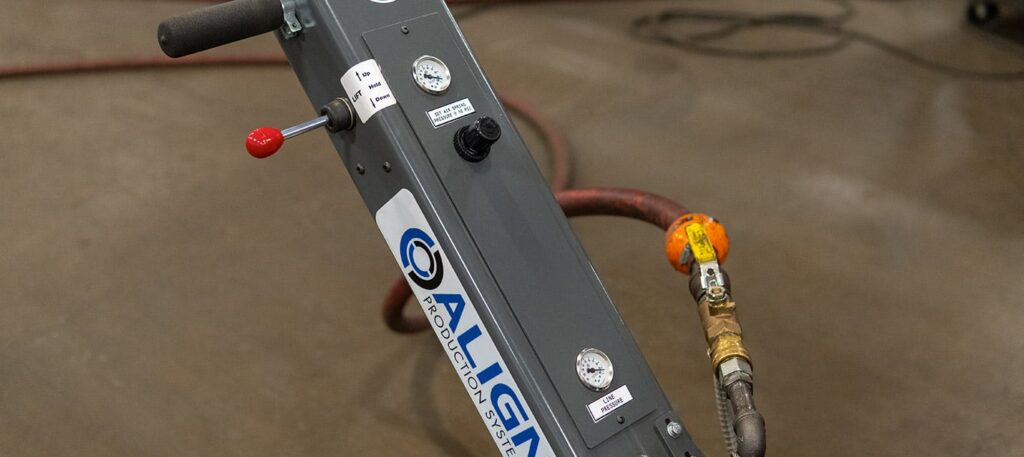

Hand
Controls
Our Pneumatic Pallet Jacks are made to last, featuring full steel construction, and all-pneumatic operation to minimize downtime and part replacement. Because our units are all pneumatic and have no electronic parts, they offer spark free operation and reduce risk, making them ideal for environments with flammable elements.
Durable
& Safe
Each Pallet Jack is built to last, featuring full steel construction and all-pneumatic operation to minimize downtime and part replacement. Because the units are all pneumatic, they are commonly used in flammable environments.
No
Pumping

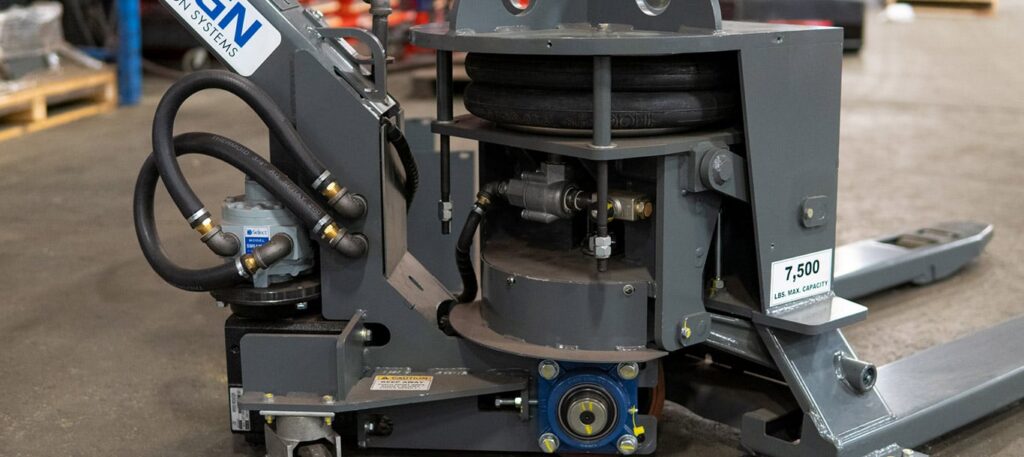

Thanks to its 100% pneumatic design and specially designed air stroke actuator, these Pallet Jacks require no manual pumping to raise the forks.
Overcome Obstacles.
Maximize Production.
