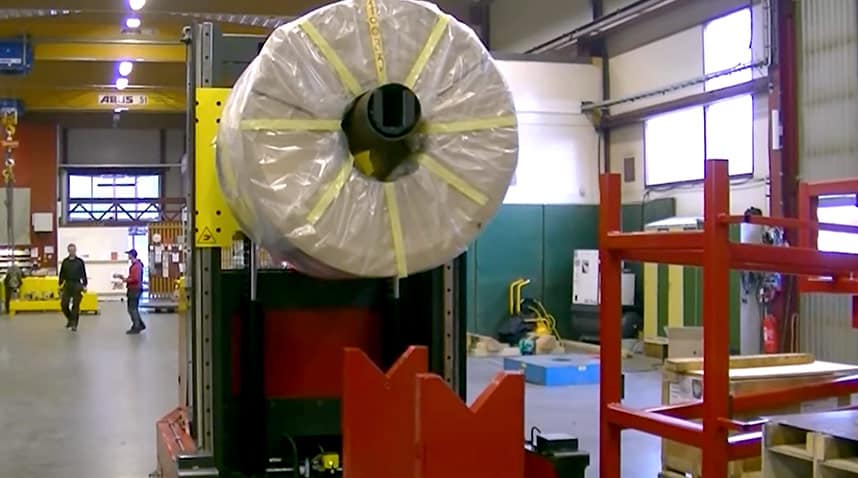

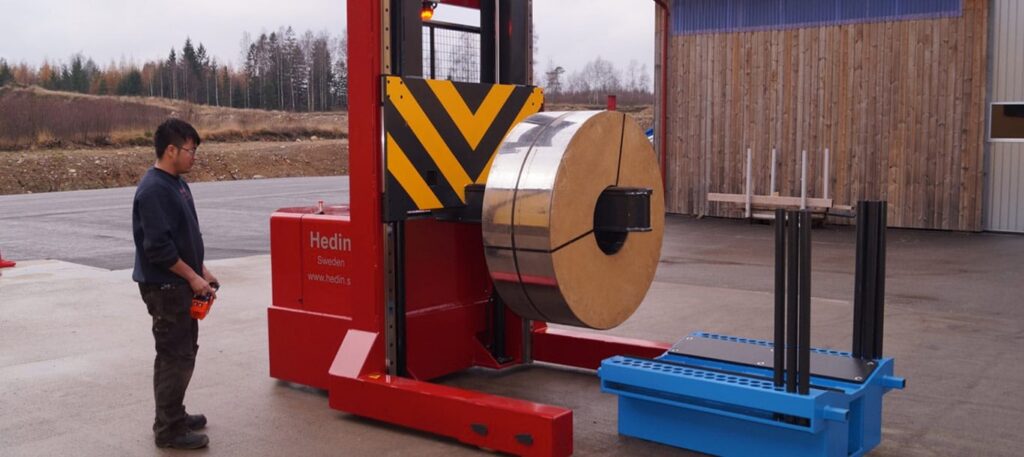

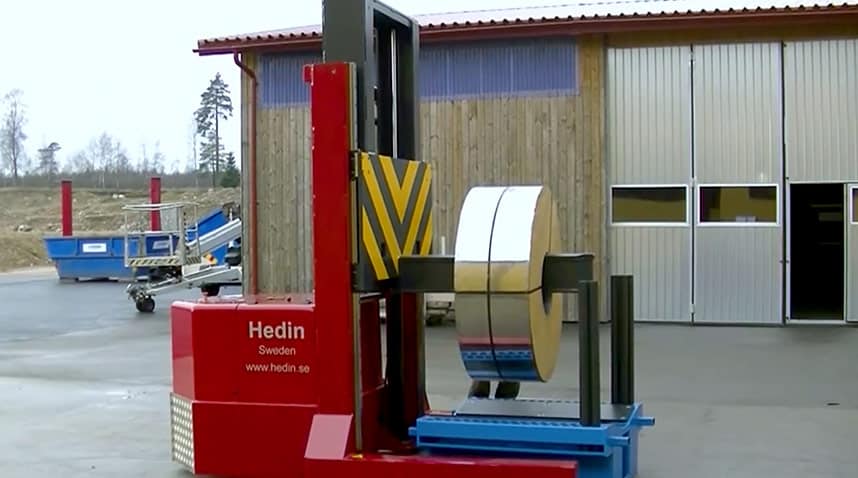

Coil Car with Spike
Move & Position Coils
Coil Car

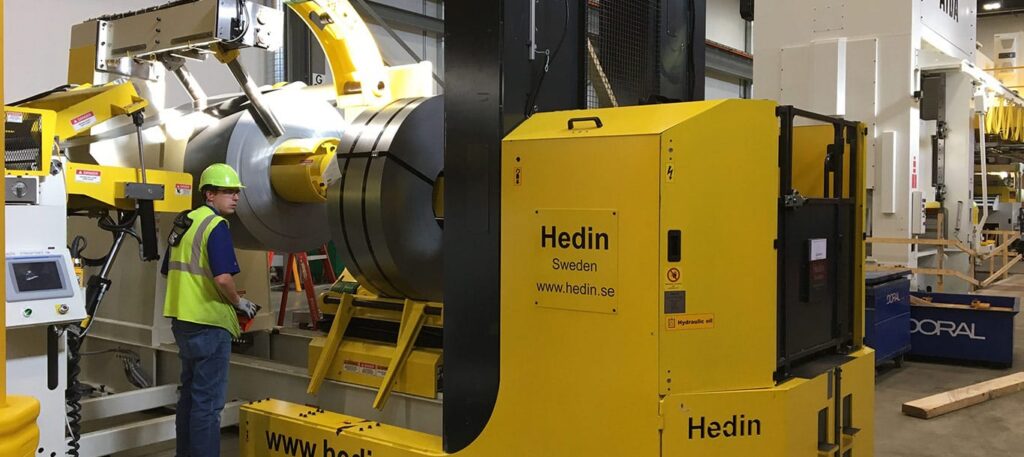

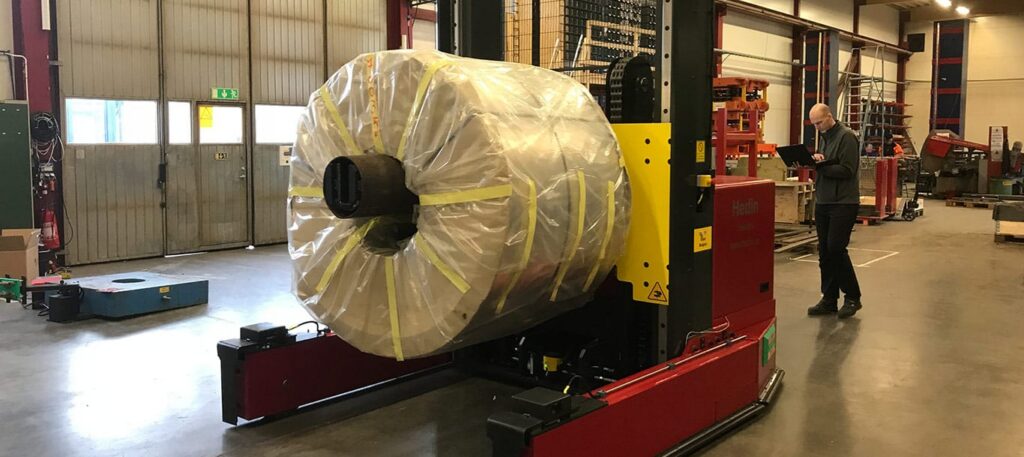

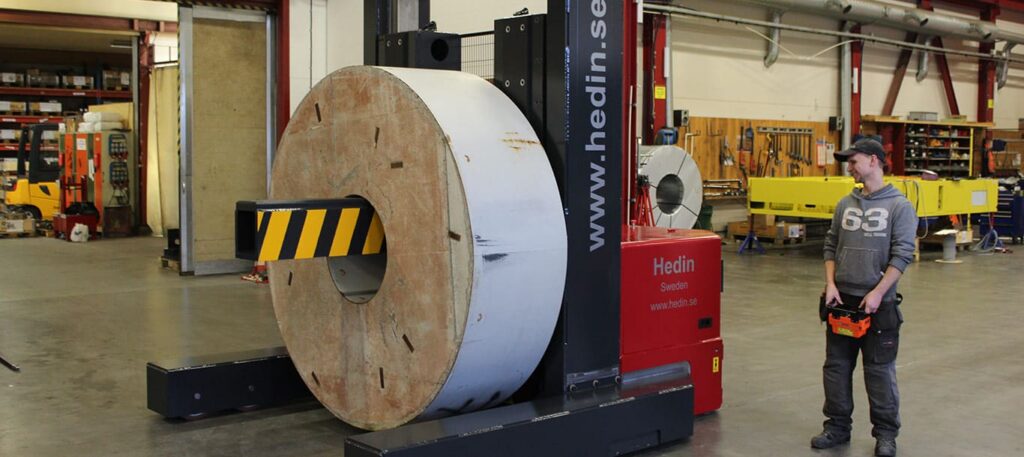

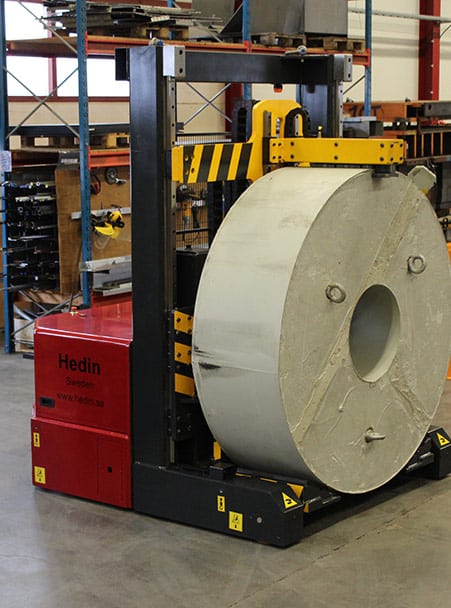

Coil Cars take on the transportation of heavy steel coils. They come in two variants, one with a spike, and one with a cradle, ensuring that no matter the durability of your coil, we’ve got a coil transporter that fits your specific application and transports it carefully with no damage. As an all-electric battery powered unit, the Coil Car operates independently from the rest of your production line, allowing the operator to use it whenever and wherever necessary.
| Model No. | Capacity (lbs) | Length (in) | Width (in) | Height (in) | Stroke (in) | Battery (volts/amps) | Recharge Time (hrs) | Speed Max (FPM) | Battery Life (ft) |
|---|---|---|---|---|---|---|---|---|---|
|
HED060-0006 |
13,000 |
110 1/4 |
72 13/16 |
100 3/8 |
64 15/16 |
48V, 320A |
3 |
150 |
16,400 |
|
HED060-0012 |
26,500 |
114 3/16 |
86 5/8 |
108 1/4 |
72 13/16 |
48V, 320A |
3 |
150 |
13,100 |
|
HED060-0055 |
55,000 |
122 1/16 |
100 3/8 |
114 3/16 |
39 3/8 |
48V, 420A |
6 |
100 |
13,100 |
| Model No. | Capacity (kgs) | Length (mm) | Width (mm) | Height (mm) | Stroke (mm) | Battery (volts/amps) | Recharge Time (hrs) | Speed Max (MPM) | Battery Life (m) |
|---|---|---|---|---|---|---|---|---|---|
|
HED060-0006 |
6,000 |
2,800 |
1,850 |
2,550 |
1,650 |
48V, 320A |
3 |
45 |
5,000 |
|
HED060-0012 |
12,000 |
2,900 |
2,200 |
2,750 |
1,850 |
48V, 320A |
3 |
45 |
4,000 |
|
HED060-0055 |
25,000 |
3,100 |
2,550 |
2,900 |
1,000 |
48V, 420A |
6 |
30 |
4,000 |
Discover the Benefits of Battery Powered.
Features
Compatibility with Coil Cars

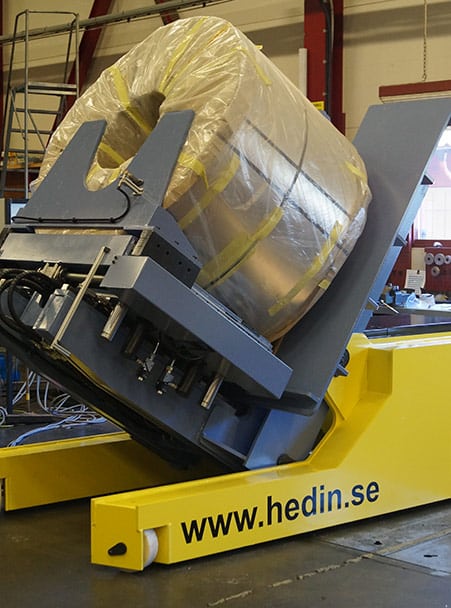

Coil Cars can be used independently for coil handling, or they can be paired with our Coil Tipper, creating a full systems dedicated to loading, unloading, tipping, and transporting heavy coils throughout a facility.
Positioning Capabilities
Allows operators to pick up and position coils on feeding lines for stamping, or to be moved away from production lines and positioned to be ready for packaging or shipping processes.
AGV Technology
Stop using costly cranes and dangerously handling coils with forklifts when it could all be automated with AGV technology and keep your feeder lines full and ensure production bottlenecks are nonexistent.

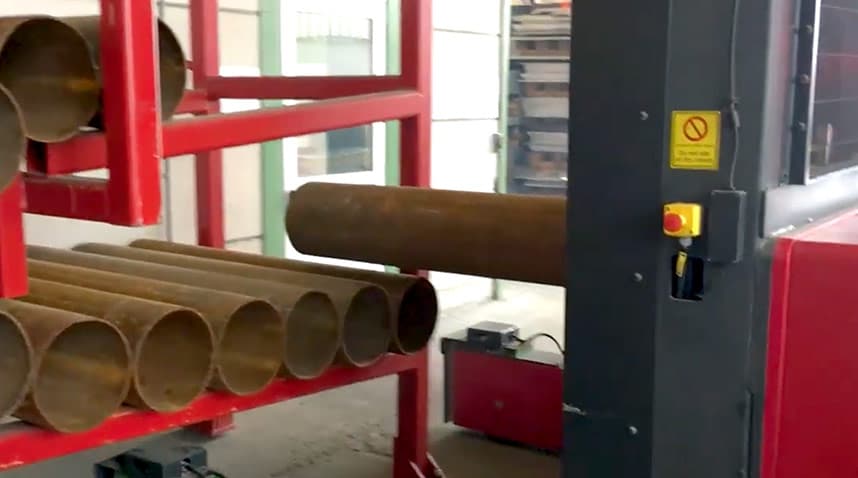

COIL CAR VIDEO LIBRARY
Frequently asked questions
Can I charge my Hedin USA product on a normal 110v outlet?
You can charge some of our products on normal 110v outlets, but higher voltage outlets will result in higher charging speeds.
Are there any emissions with your battery-powered machinery?
All of our battery-powered equipment, such as our transporters and power tuggers, are emission free thanks to our battery technology.
What type of battery options are available on Hedin USA products?
We offer our products with the choice of either dry and wet cell batteries. Please contact our sales engineering team to determine which battery type is best suited for your application.
