Coil Tipper
90° Tilt Movement
Coil Tipper

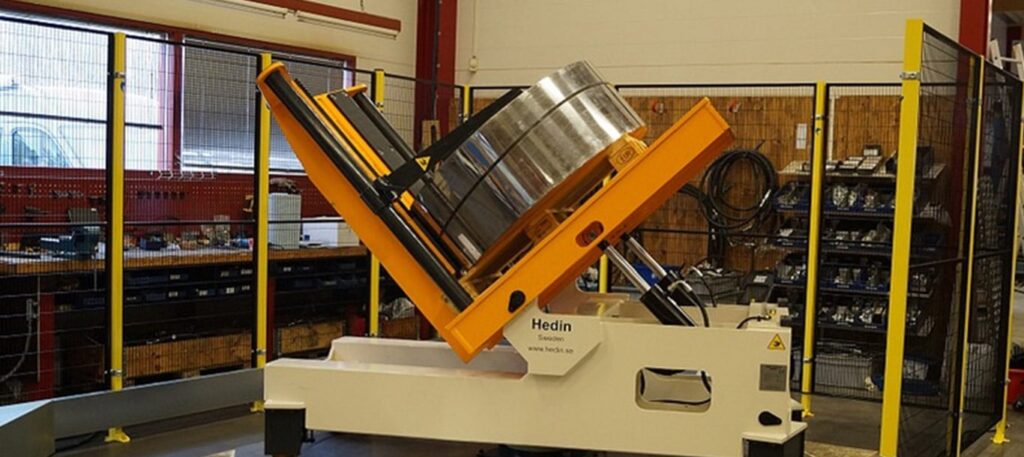

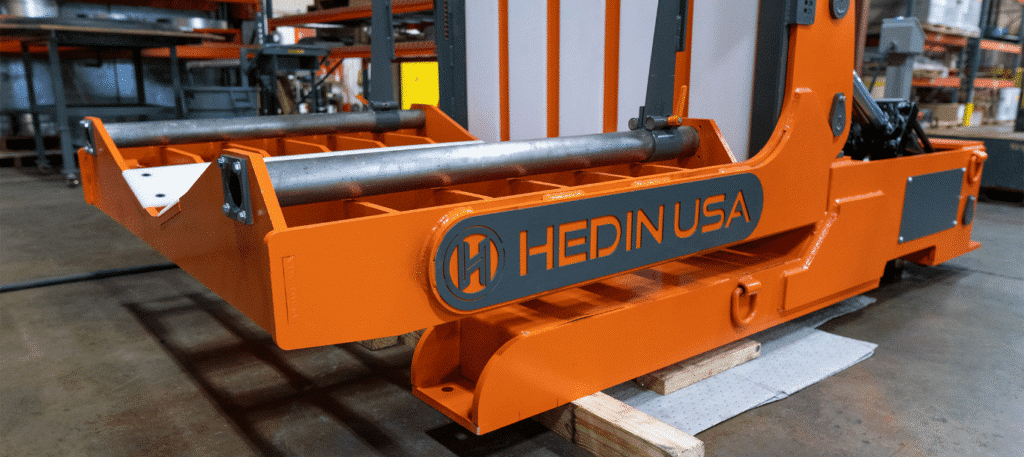

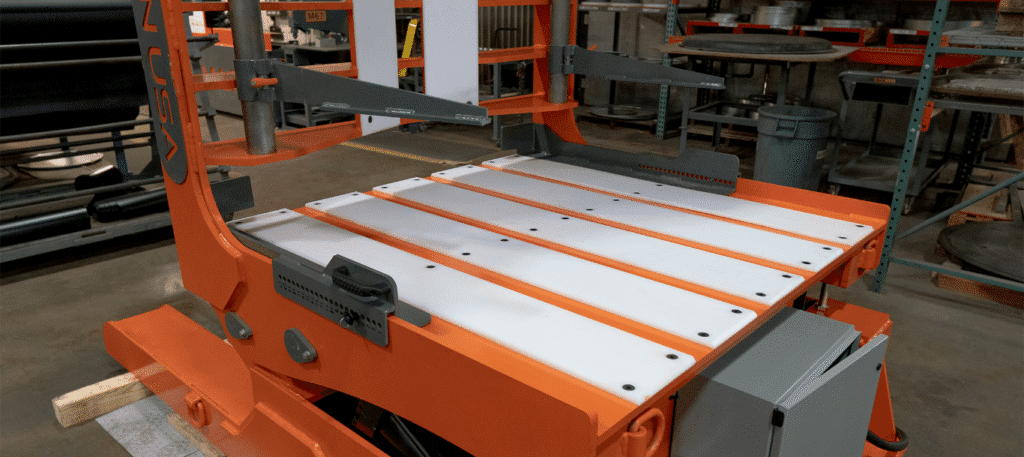

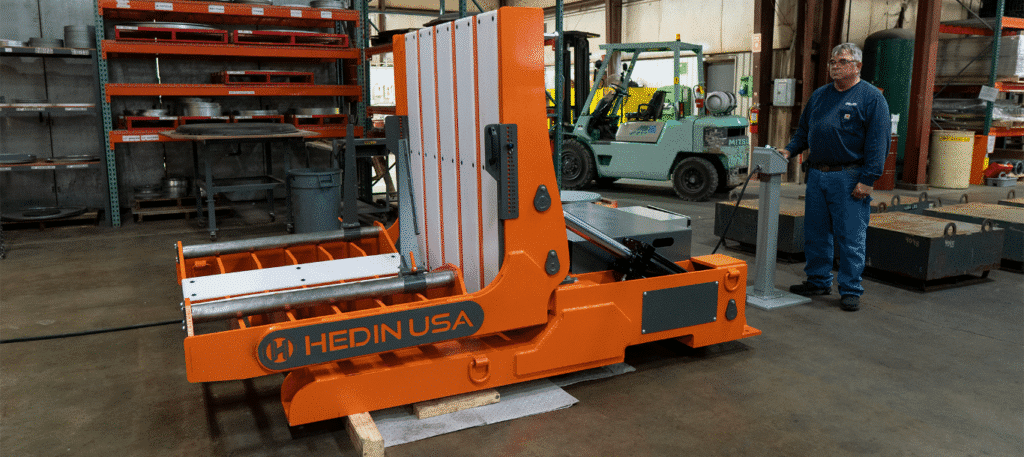

Coil Tippers are an all in one solution for the positioning of coils. We offer the ability to tilt 90° horizontally and vertically, and an added function of 180° rotation. With capacities at hundreds of thousands of pounds, our Coil Car offers an easy solution to the transportation of coils, ultimately eliminating the need for an overhead crane or rail-based systems. As an all-electric battery powered unit, the Coil Car operates independently from the rest of your production line, allowing the operator to use it whenever and wherever they need to.
| Model No. | Capacity (lbs) | Tilt Angle (deg) | Length (in) | Width (in) | Height (in) |
|---|---|---|---|---|---|
|
HED080-010 |
22,000 |
90 |
98.43 |
47.24 |
23.62 |
|
HED080-005 |
11,000 |
90 |
90.55 |
39.37 |
23.62 |
| Model No. | Capacity (kgs) | Tilt Angle (deg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|
|
HED080-010 |
10,000 |
90 |
2,500 |
1,200 |
600 |
|
HED080-005 |
5,000 |
90 |
2,300 |
1,000 |
600 |

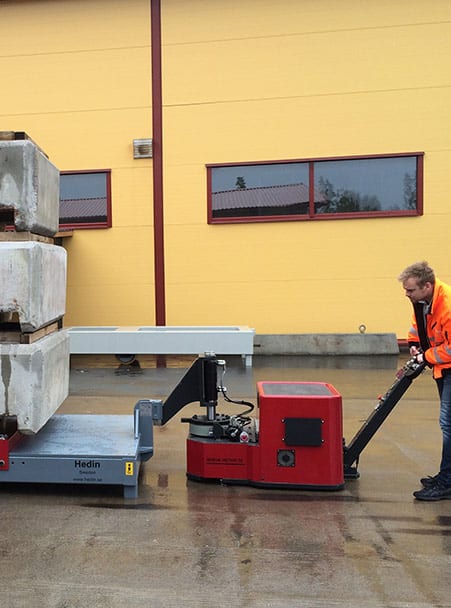

Discover the Benefits of Battery Powered.
Features
Palletizing Coils
Coil Tippers have the ability to load steel coils onto pallets, making them ready to be taken away and put into storage, transported to be used in manufacturing, or sent off to be shipped.

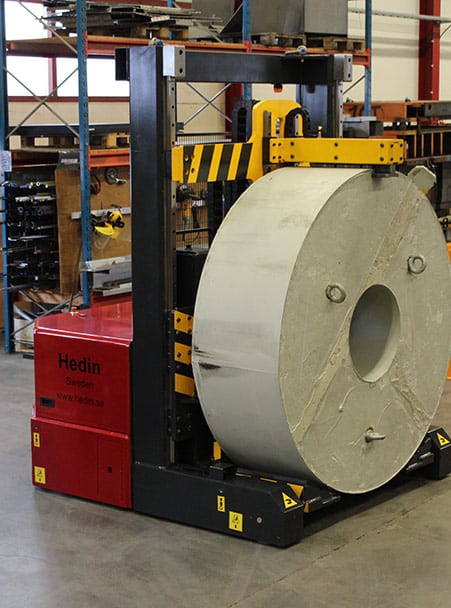

Compatible with Coil Cars

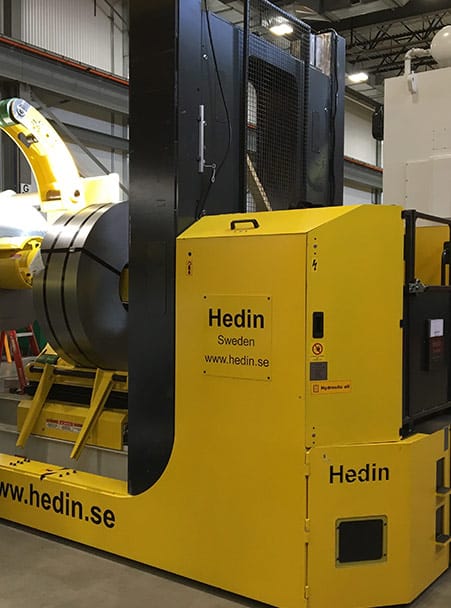

Once the steel coils are tipped into position, Hedin USA’s Coil Cars can be driven to pick up coils up to 55,000 lbs., either by steering handle, RF, controller, ride-along controlled, or operated by AGV technology, and transport them throughout the facility.
Eliminate Cranes
Instead of using overhead crane systems that can be dangerous to operate around workers, the Coil Tipper positions the coils and allows them to be picked up by a Coil Car, completely eliminating the need to use over head cranes and risk work safety.

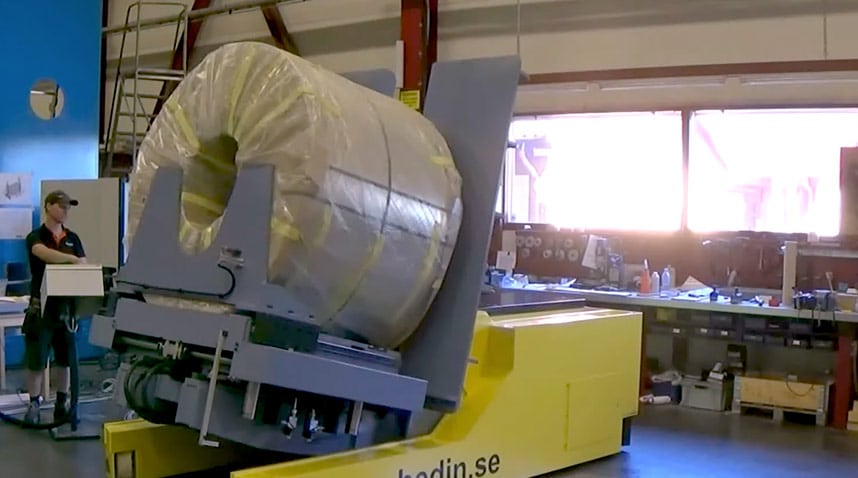

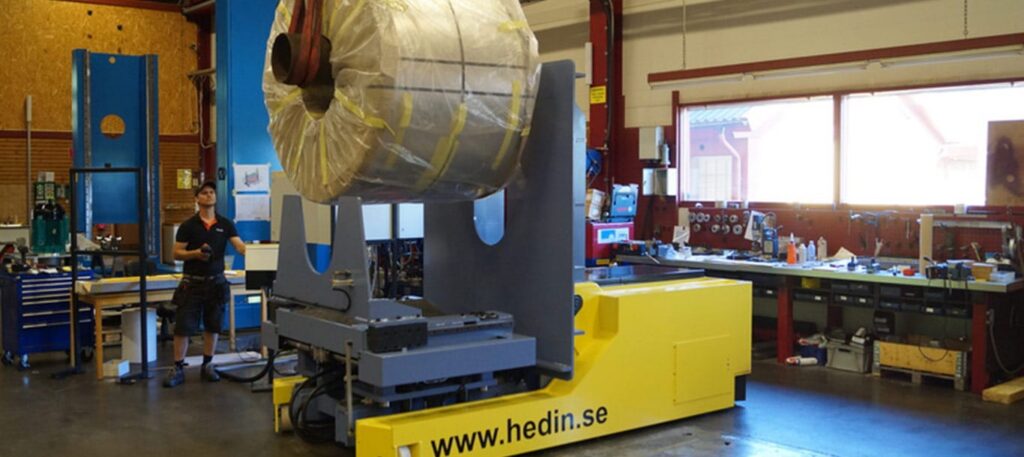

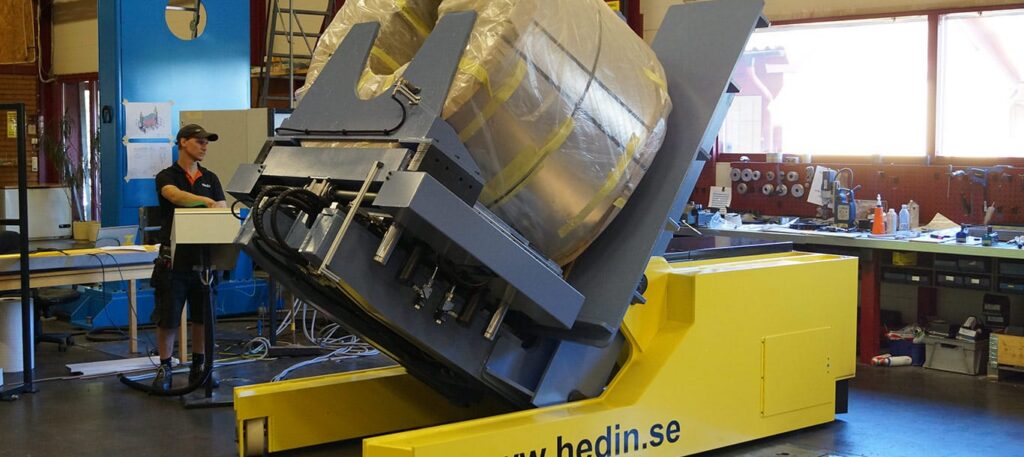

COIL TIPPER VIDEO LIBRARY
Frequently asked questions
What safety features are offered on your equipment?
Safety features vary from product to product, but we are proud to say that safety is our number one priority for our products. We offer a range of safety equipment on our machinery to ensure that the equipment can be operated safely and efficiently.
Where are your products manufactured?
We are proud to say that all of our products are manufactured and designed in the United States of America, in partnership with Hedin Lagan based in Sweden. Hedin USA is headquartered in St. Louis, Missouri, and our products are manufactured at our facility in Decatur, Illinois.
What’s the difference between Hedin USA and Hedin Lagan?
Hedin USA is a partnership between Align Production Systems & Hedin Lagan to offer Hedin products in the Americas. Learn more here.
