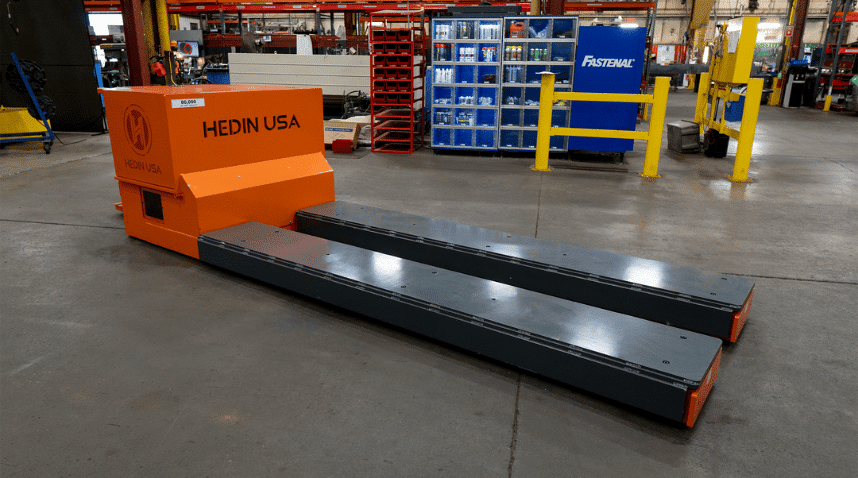

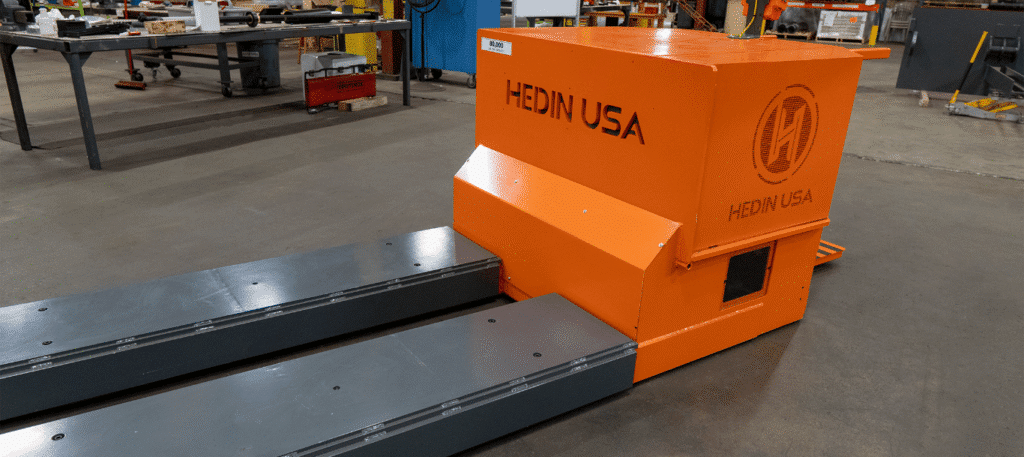

Pallet Transporter
Fork-Style Bed
Pallet Transporter 3d Model
Pallet Transporter

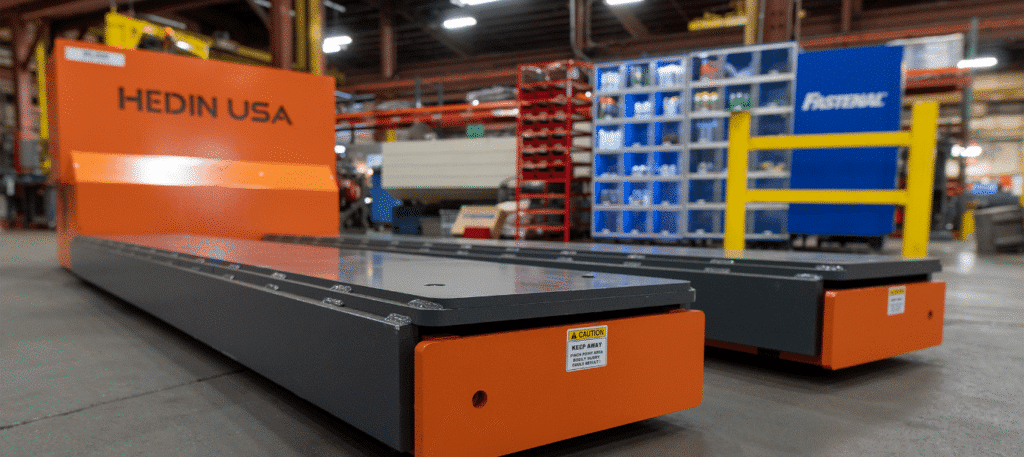

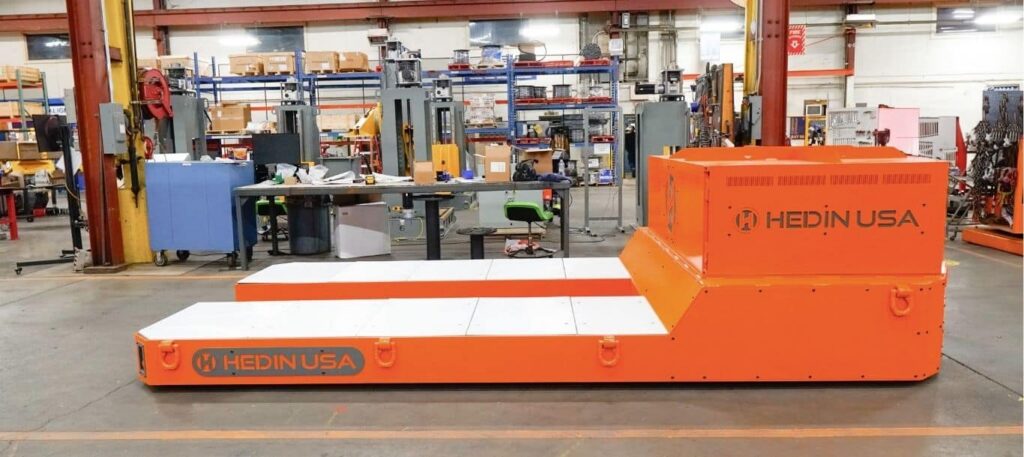

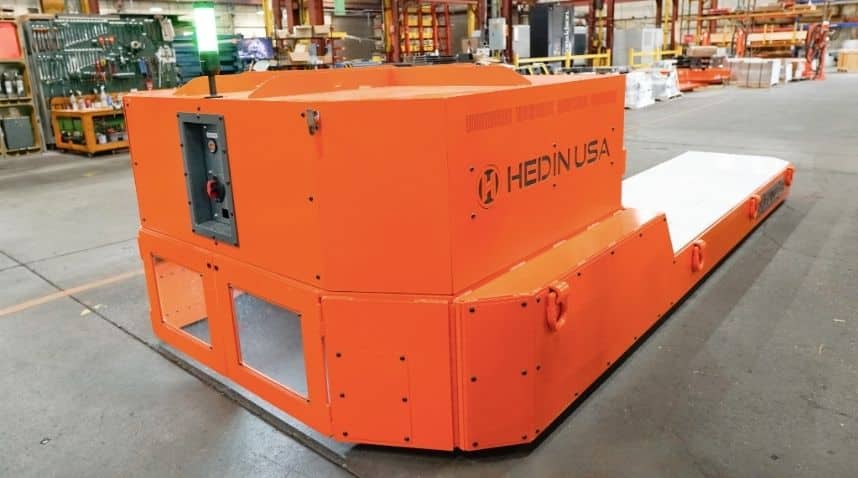

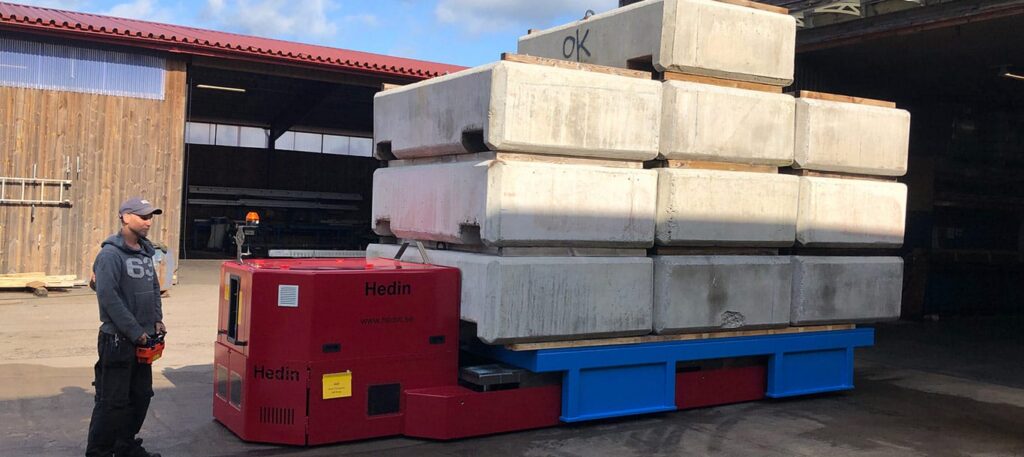

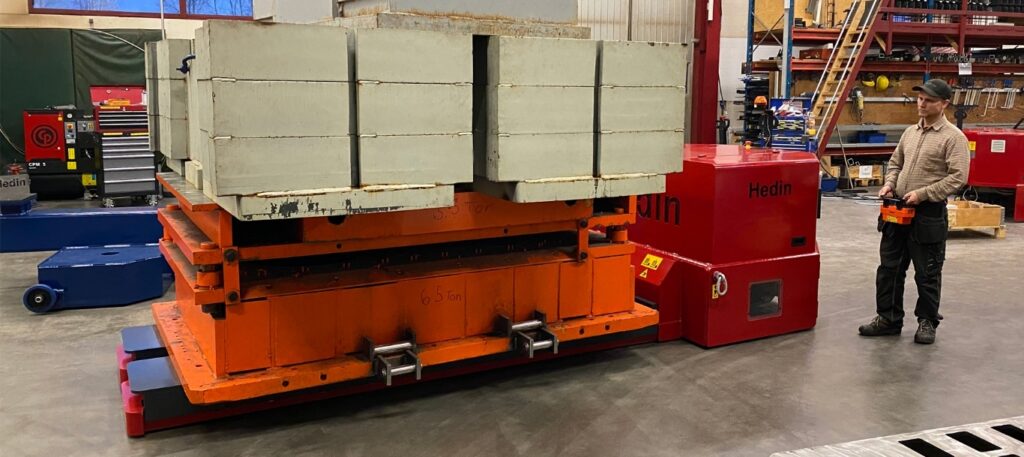

Pallet Transporters from Hedin USA use an adjustable fork system to be able to slide under heavy loads and transport them around a facility. The Transporters lift the pallet or fixture off the ground, allowing the operator to harness the power of our all-electric Transporters to easily move loads of that weigh hundreds of thousands of pounds.
| Model No. | Capacity (lbs) | Length (in) | Width (in) | Height (in) | Stroke (in) | Battery (volts/amps) | Recharge Time 50-95% (hrs) | Number of Drives | Speed Max (FPM) | Battery Life (ft) |
|---|---|---|---|---|---|---|---|---|---|---|
|
HED030-0012 |
26,500 |
138 |
30 11/16 |
43 5/16 |
2 3/8 |
48V, 160A |
3 |
1 |
180 |
13,100 |
|
HED030-0020 |
44,000 |
157 11/16 |
37 3/8 |
43 5/16 |
2 3/8 |
48V, 320A |
3 |
1 |
150 |
13,100 |
|
HED030-0030 |
66,000 |
177 3/8 |
41 5/16 |
46 7/16 |
3 1/8 |
48V, 420A |
6 |
1 |
100 |
13,100 |
|
HED030-0040 |
88,000 |
216 12/16 |
57 1/16 |
46 7/16 |
3 2/16 |
48V, 420A |
6 |
1 |
98 |
13,100 |
|
HED030-0060 |
132,500 |
256 2/16 |
57 1/16 |
46 7/16 |
3 15/16 |
48V, 420A |
6 |
1 |
98 |
9,850 |
| Model No. | Capacity (kgs) | Length (mm) | Width (mm) | Height (mm) | Stroke (mm) | Battery (volts/amps) | Recharge Time 50-95% (hrs) | Number of Drives | Speed Max (MPM) | Battery Life (m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
HED030-0012 |
12,000 |
3,505 |
780 |
1,100 |
60 |
48V, 160A |
3 |
1 |
55 |
4,000 |
|
HED030-0020 |
20,000 |
4,005 |
950 |
1,100 |
60 |
48V, 320A |
3 |
1 |
45 |
4,000 |
|
HED030-0030 |
30,000 |
4,505 |
1,050 |
1,180 |
80 |
48V, 420A |
6 |
1 |
30 |
4,000 |
|
HED030-0040 |
40,000 |
5,505 |
1,450 |
1,180 |
80 |
48V, 420A |
6 |
1 |
30 |
4,000 |
|
HED030-0060 |
60,000 |
6,505 |
1,450 |
1,180 |
100 |
48V, 420A |
6 |
1 |
30 |
3,000 |
Discover the Benefits of Battery Powered.
Features

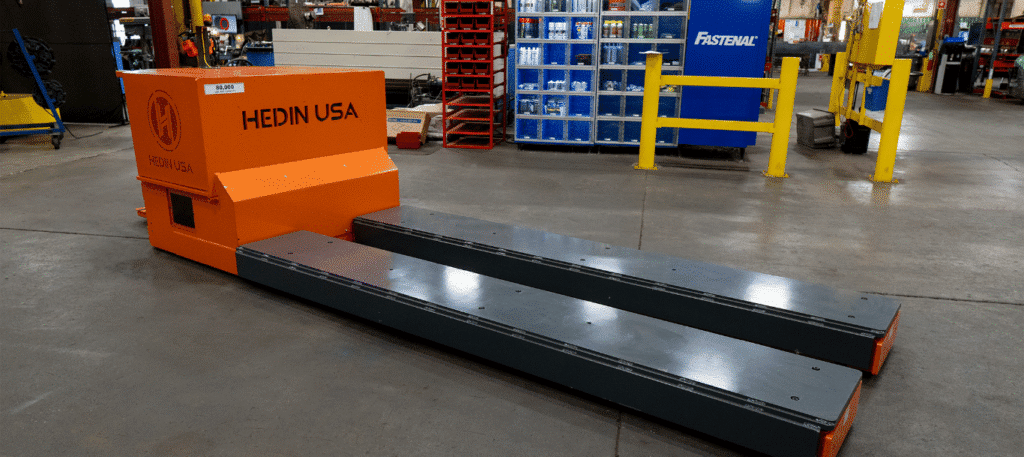

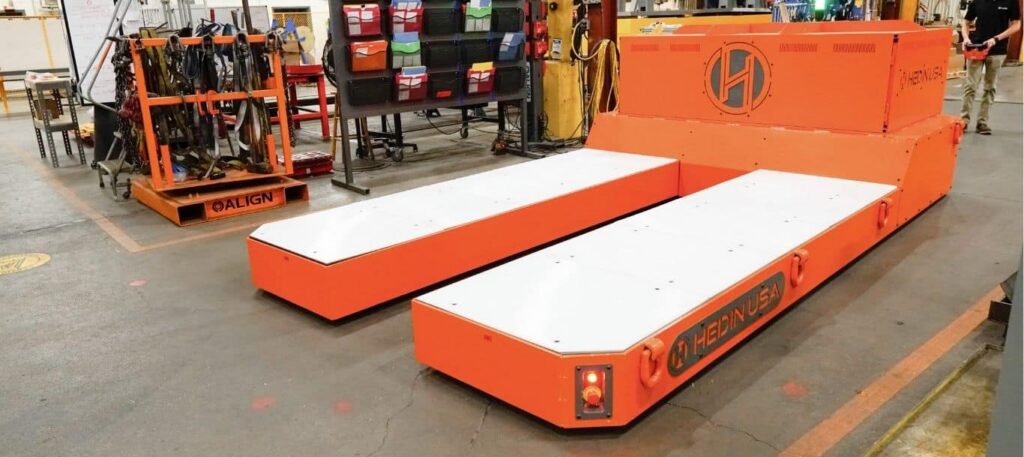

Adjustable Forks
Instead of using a fixed fork system, adjustable forks allow for the Pallet Transporter to pick up and move different sized pallets on the fly, allowing for maximum flexibility and minimum downtime between fork width changes.
All Electric
No fumes, gases, or odd smells will be put into the air of your facility. Our electric transporters are emission free and operate clean and green. The whole transporter recharges within just a few short hours, allowing your facility to stay on top of its game and minimize downtime.
Customization Options
We like to take care of our customers, as their success fuels our own. Need a customer charging solution? We’ll take care of it. Special safety features? We can do that. Specific requirements that need to be met for your facility? We’ll work with you to meet those standards. We’re no stranger to customization. It’s what we do best.

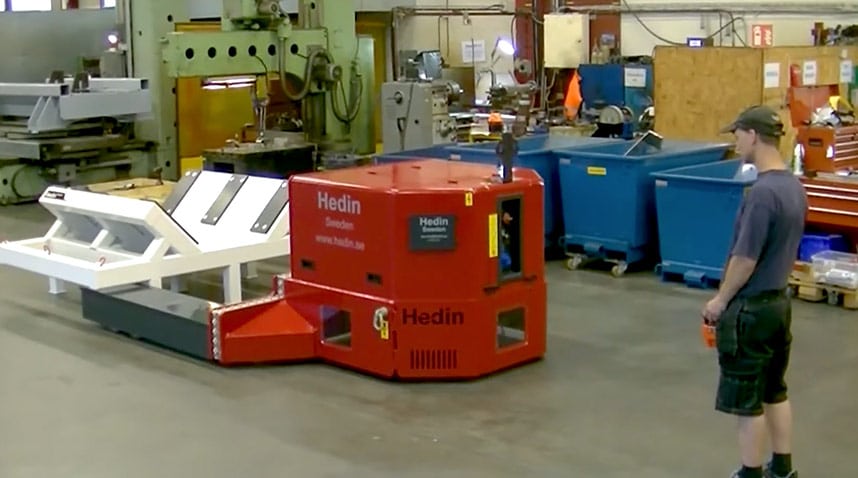

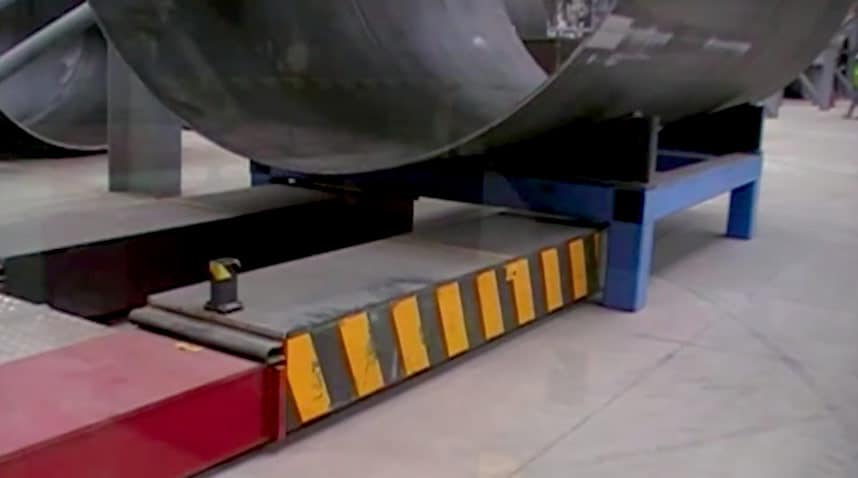

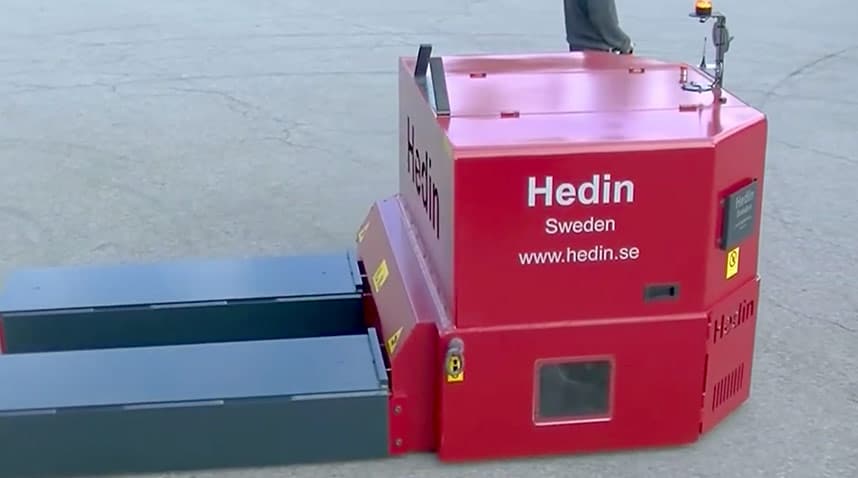

PALLET TRANSPORTER VIDEO LIBRARY
Frequently asked questions

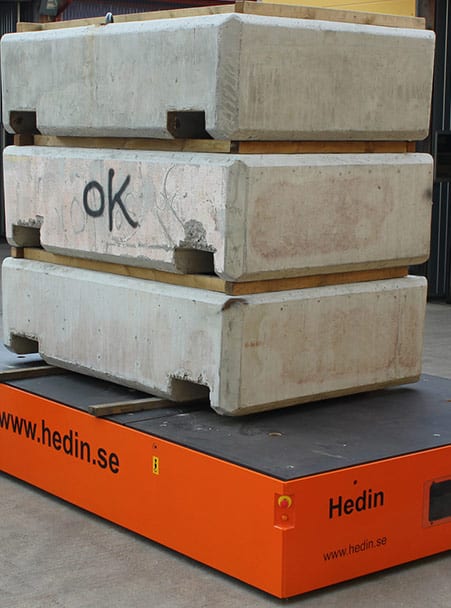

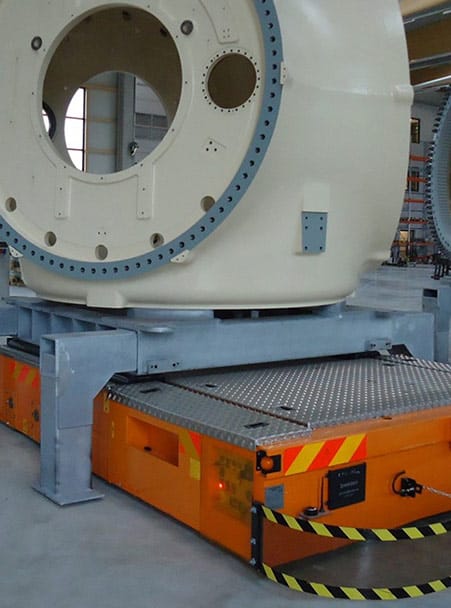

What’s the difference between a Flatbed Transporter and a Pallet Transporter?
The Pallet Transporter is a low-profile loading bed, with a controllable unit at the end. Our Flatbed Transporters are an all-in-one design and offer a higher load height than other transporters.
I don’t see the right size or product that I’m looking for.
In addition to our readily available sizes, we offer custom engineering and development to come up with solutions unique to each customer. If you’re looking for specific sizing or if you need help finding the right solution for you, click the “Contact Us” button for different ways you can reach us.
When do I need my batteries or wheels replaced?
All of our equipment is designed for industrial use with daily use in mind. However, if you run into an issue with your battery or wheels, you can always fill out a form on our “Request a Quote Page” for a replacement part. Normal maintenance, however, varies between products and can be found in your owner’s manual.
