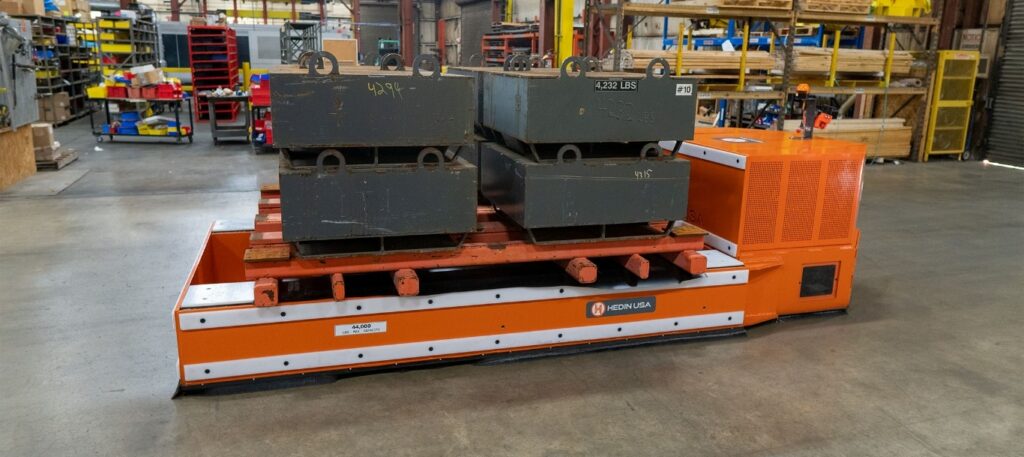

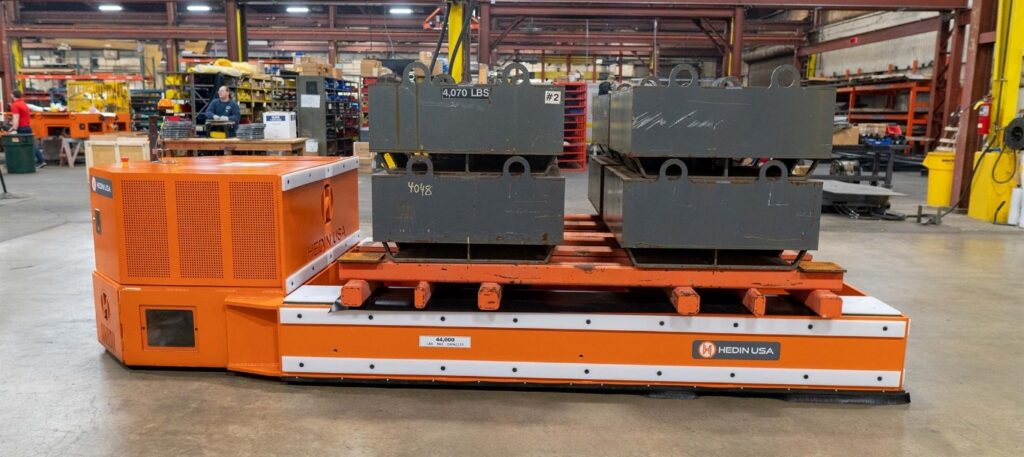

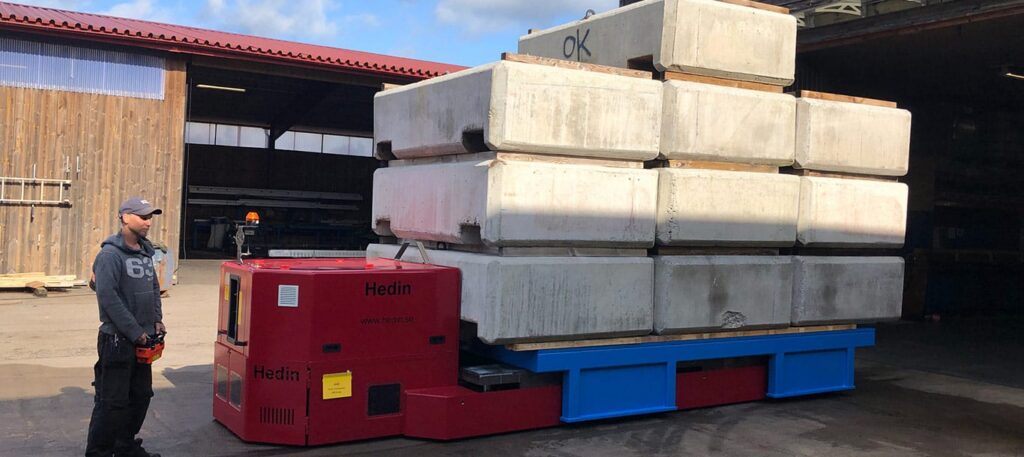

Platform Transporter

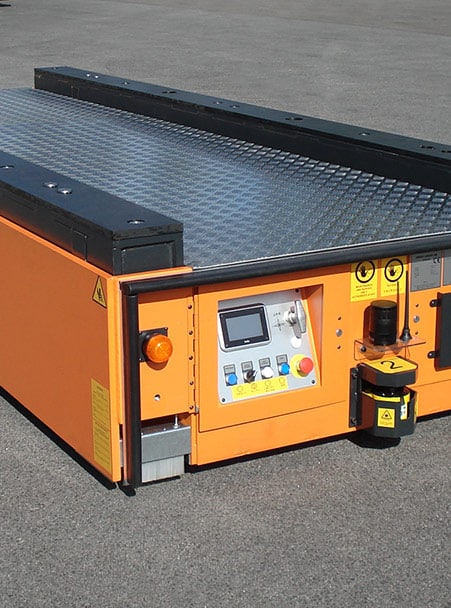

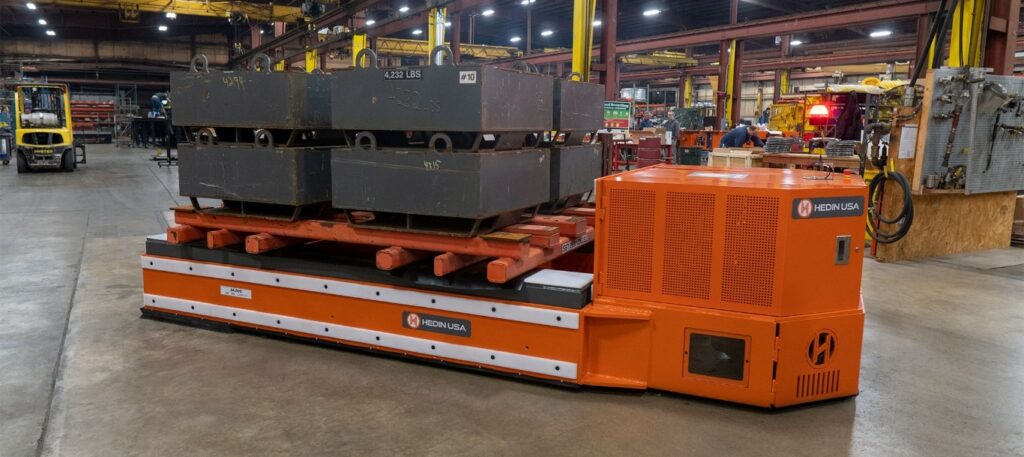

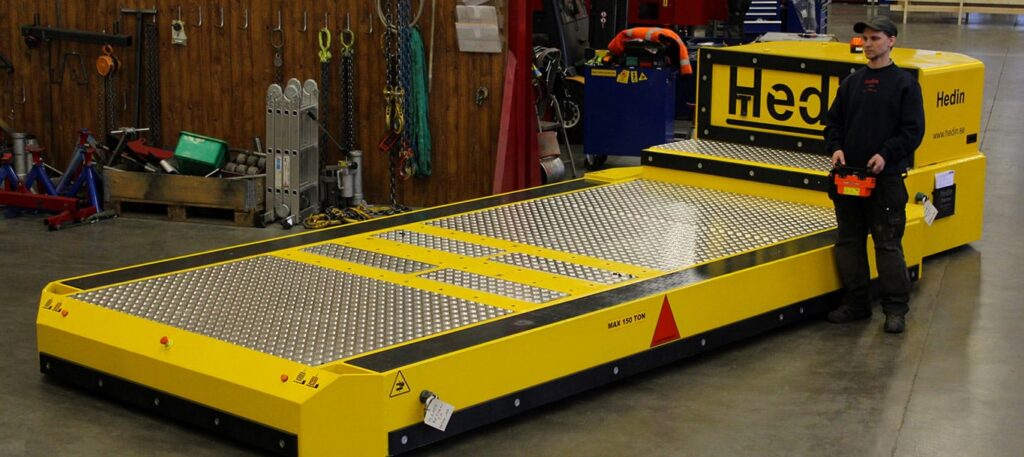

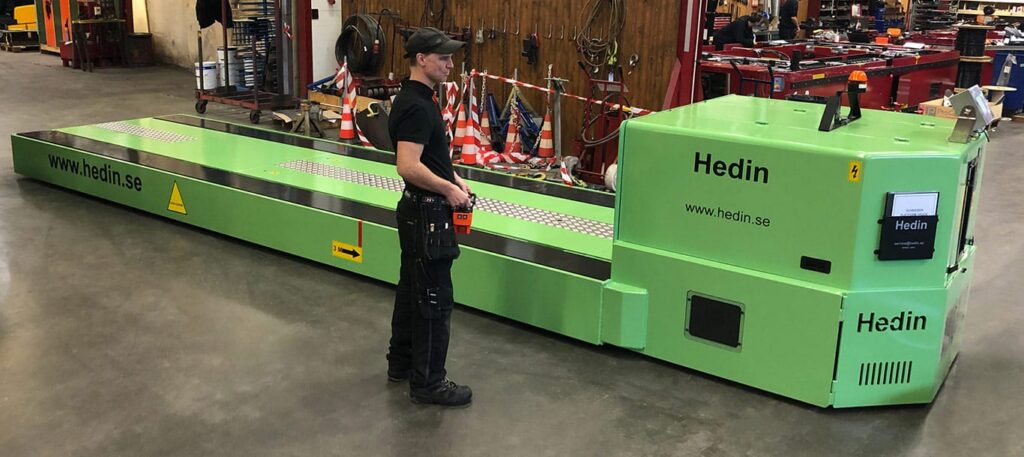

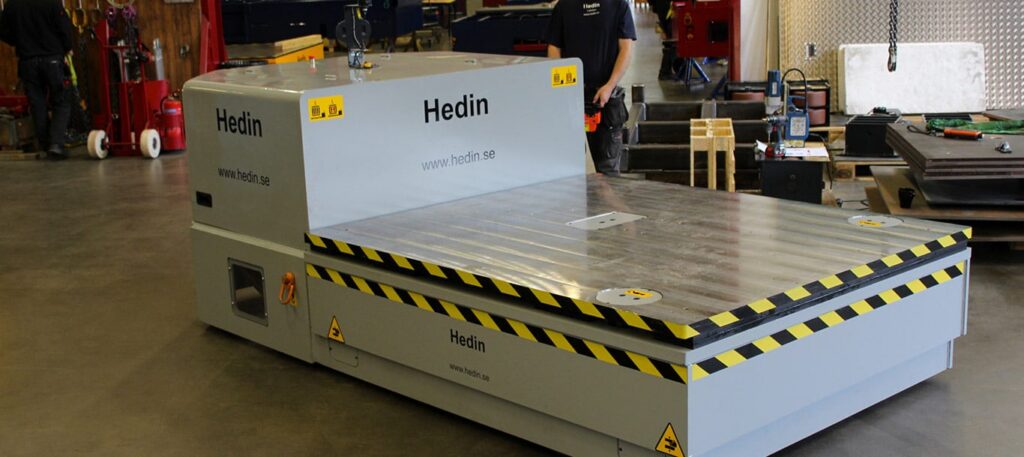

Easily move and position loads up to hundreds of thousands of pounds with the Platform Transporter, the ideal solution for easily moving heavy loads in manufacturing facilities. All Platform Transporters are customizable to fit your operation, configurable with multi-directional drives for crab steering and zero degree turning, safety scanners, and AGV drive systems.
| Model No. | Capacity (lbs) | Length (in) | Width (in) | Height (in) | Stroke (in) | Battery (volts/amps) | Recharge Time 50-95% (hrs) | Number of Drives | Speed Max (FPM) | Battery Life (ft) |
|---|---|---|---|---|---|---|---|---|---|---|
|
HED031-0020 |
44,000 |
157 11/16 |
50 3/8 |
43 5/16 |
3 1/8 |
48V, 320A |
3 |
1 |
148 |
16,400 |
|
HED031-0030 |
66,000 |
177 3/8 |
61 |
46 7/16 |
3 15/16 |
48V, 420A |
6 |
1 |
98 |
14,750 |
|
HED031-0040 |
88,000 |
197 1/16 |
61 |
46 7/16 |
3 15/16 |
48V, 420A |
6 |
1 |
98 |
13,100 |
|
HED031-0060 |
132,500 |
216 3/4 |
61 |
46 7/16 |
3 15/16 |
48V, 420A |
6 |
1 |
98 |
11,500 |
|
HED031-0080 |
176,500 |
240 3/8 |
66 9/16 |
51 3/16 |
3 15/16 |
48V, 600A |
6 |
1 |
98 |
9,850 |
|
HED031-0120 |
264,500 |
240 3/8 |
86 5/8 |
51 3/16 |
3 15/16 |
48V, 600A |
6 |
1 |
69 |
6,550 |
| Model No. | Capacity (kgs) | Length (mm) | Width (mm) | Height (mm) | Stroke (mm) | Battery (volts/amps) | Recharge Time 50-95% (hrs) | Number of Drives | Speed Max (MPM) | Battery Life (m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
HED031-0020 |
20,000 |
4,005 |
1,280 |
1,100 |
80 |
48V, 320A |
3 |
1 |
45 |
5,000 |
|
HED031-0030 |
30,000 |
4,505 |
1,550 |
1,180 |
100 |
48V, 420A |
6 |
1 |
30 |
4,500 |
|
HED031-0040 |
40,000 |
5,005 |
1,550 |
1,180 |
100 |
48V, 420A |
6 |
1 |
30 |
4,000 |
|
HED031-0060 |
60,000 |
5,505 |
1,550 |
1,180 |
100 |
48V, 420A |
6 |
1 |
30 |
3,500 |
|
HED031-0080 |
80,000 |
6,105 |
1,690 |
1,300 |
100 |
48V, 600A |
6 |
1 |
30 |
3,000 |
|
HED031-0120 |
120,000 |
6,105 |
2,200 |
1,300 |
100 |
48V, 600A |
6 |
1 |
21 |
2,000 |
Discover the Benefits of Battery Powered.
Features
Increase in Safety

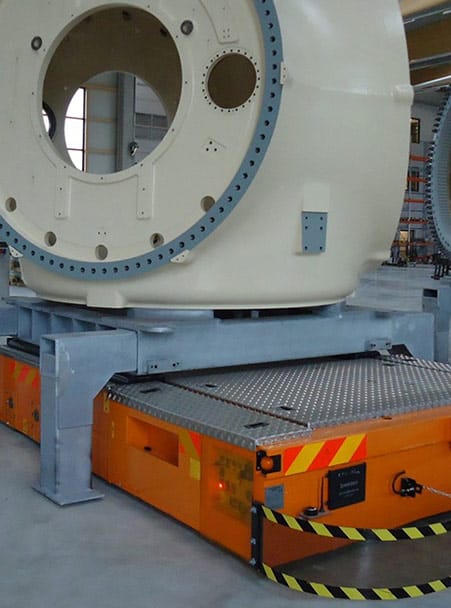

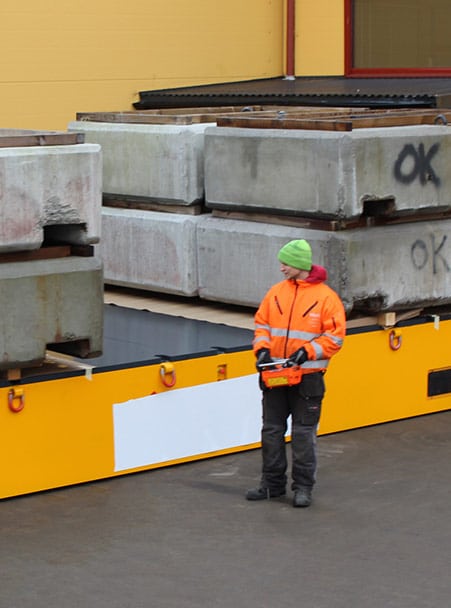

The Platform Transporter features a flat bed that slides underneath heavy loads and uses hydraulic lifts to pick them up for movement. Instead of using overhead cranes to dangerously move loads, Platform Transporters keep operators at a safe distance from the move.
All Electric
No fumes, gases, or odd smells will be put into the air of your facility. Our electric transporters are emission free and operate clean and green. The whole transporter recharges within just a few short hours, allowing your facility to stay on top of its game and minimize downtime.
Customization Options
We like to take care of our customers, as their success fuels our own. Need a customer charging solution? We’ll take care of it. Special safety features? We can do that. Specific requirements that need to be met for your facility? We’ll work with you to meet those standards. We’re no stranger to customization. It’s what we do best.

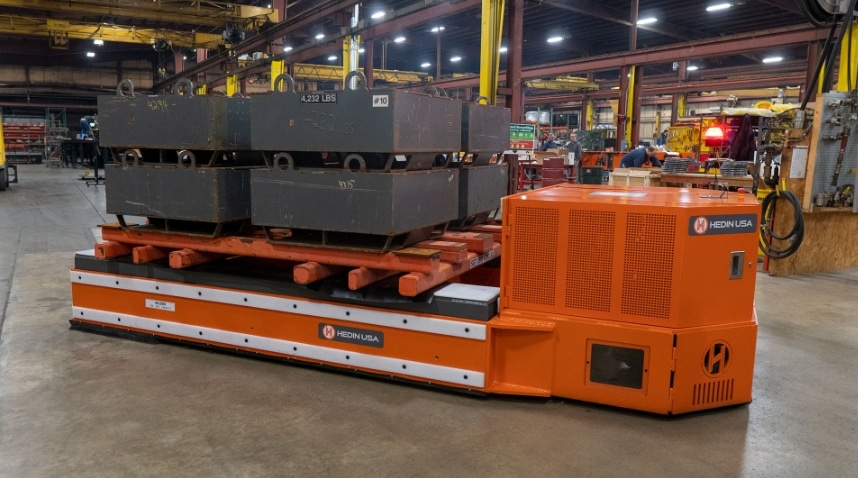

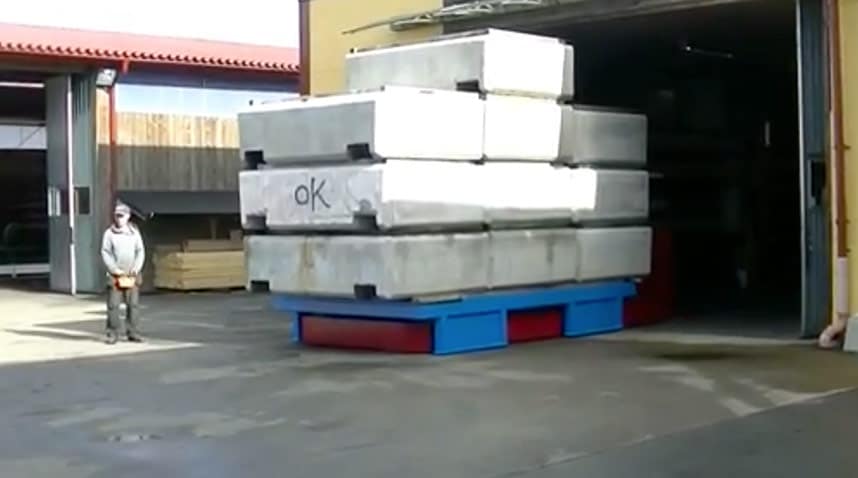

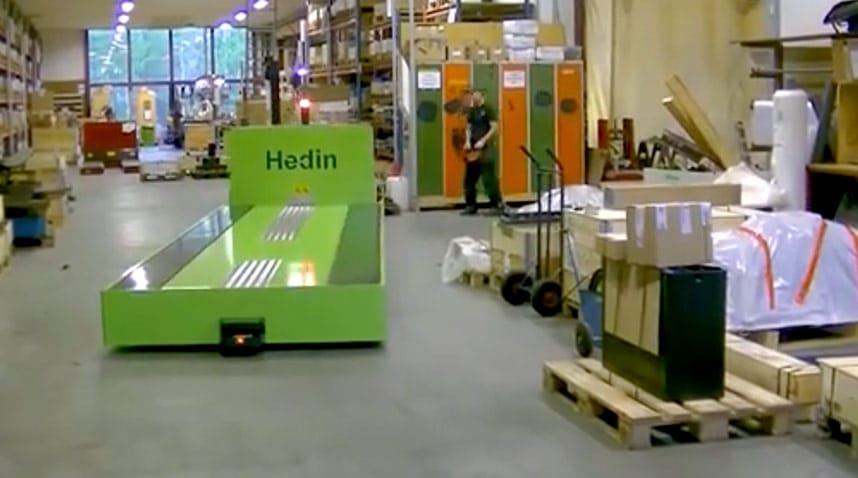

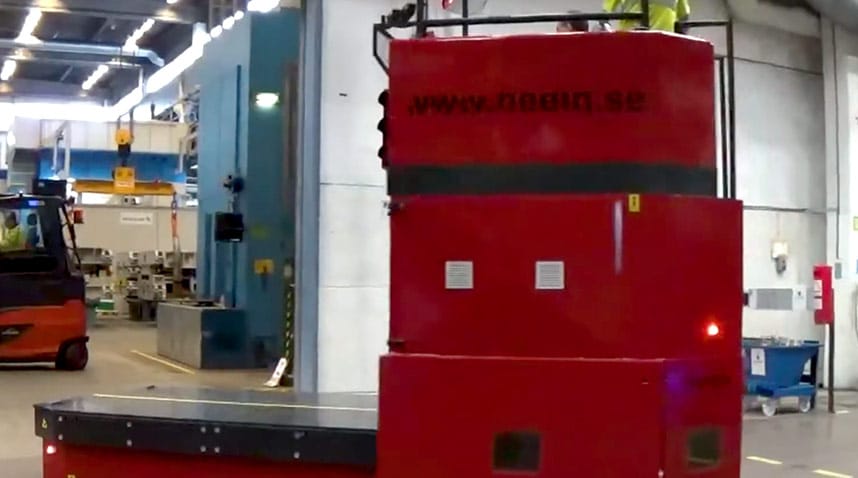

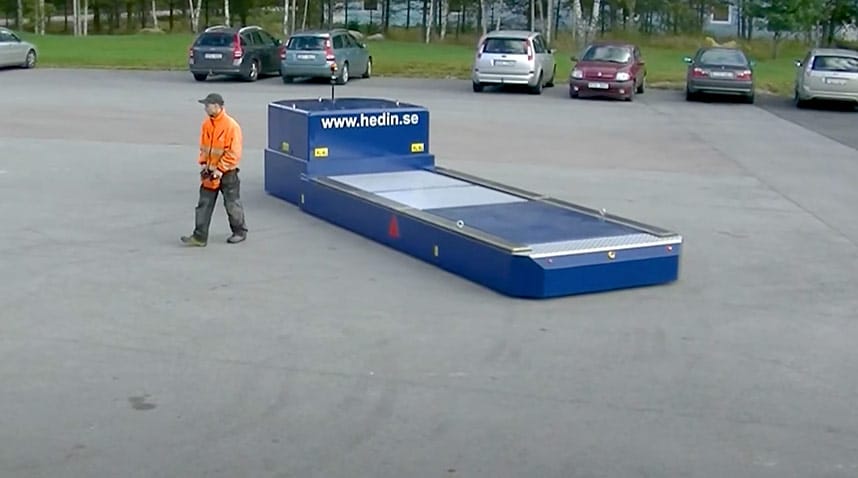

PLATFORM TRANSPORTER VIDEO LIBRARY
Frequently asked questions
What’s the difference between a Flatbed Transporter and a Pallet Transporter?
The Pallet Transporter is a low-profile loading bed, with a controllable unit at the end. Our Flatbed Transporters are an all-in-one design and offer a higher load height than other transporters.
I don’t see the right size of the Platform Transporter that I’m looking for.
In addition to our readily available sizes, we offer custom engineering and development to come up with solutions unique to each customer. If you’re looking for specific sizing or if you need help finding the right solution for you, click the “Contact Us” button for different ways you can reach us.
What type of battery options are available on Hedin USA products?
We offer our products with the choice of either dry and wet cell batteries. Please contact our sales engineering team to determine which battery type is best suited for your application.
