An engine manufacturer needed a reliable way to move extremely large, heavy engines through multiple stages of production within their facility. Their existing transporters were aging and could not consistently meet clearance requirements beneath low rack systems. Align Production Systems partnered with the manufacturer to design and deliver a custom low-profile flatbed transporter capable of handling up to 100,000 lbs while maintaining exceptional maneuverability and efficiency inside the plant.

Key Highlights

Ultra-Low Profile Transporter Design

At just 21 inches in down height, this low profile transporter is able to safely travel under low-hanging racks and throughout the facility without interference.

High Capacity in a Compact Footprint

The transporter supports loads up to 100,000 lbs using lifting pontoons, proving that heavy capacity and compact design can coexist.

Omnidirectional Maneuverability

With multi-drives, operators can steer the transporter laterally while maintaining forward motion—ideal for navigating tight spaces and obstacles.

“Designing a transporter at this height pushed our engineering team to think differently about structure, lifting, and packaging. The result is a low-profile transporter that maintains strength, stability, and performance while meeting strict clearance requirements.”
– Colton Phillips, Mechanical Engineer

The Problem

The manufacturer’s production process requires large engines to move through multiple phases, including staging, painting, and handling between work areas. Their plant layout includes low rack systems and tight clearances, making it difficult for standard transporters—typically 24 to 36 inches tall—to operate efficiently. Additionally, existing equipment was aging and no longer aligned with the manufacturer’s long-term operational needs.

The Solution

Align Production Systems engineered a custom low-profile flatbed transporter designed specifically for the manufacturer’s clearance and capacity requirements. The solution included:

A 21-inch down height to safely clear low racks
A three-inch lift via integrated pontoons
100,000-lb load capacity
Remote-controlled navigation with variable speed settings
Omnidirectional drive modes for precision movement
Lithium-ion battery power with multi-shift runtime

Implementation & Results

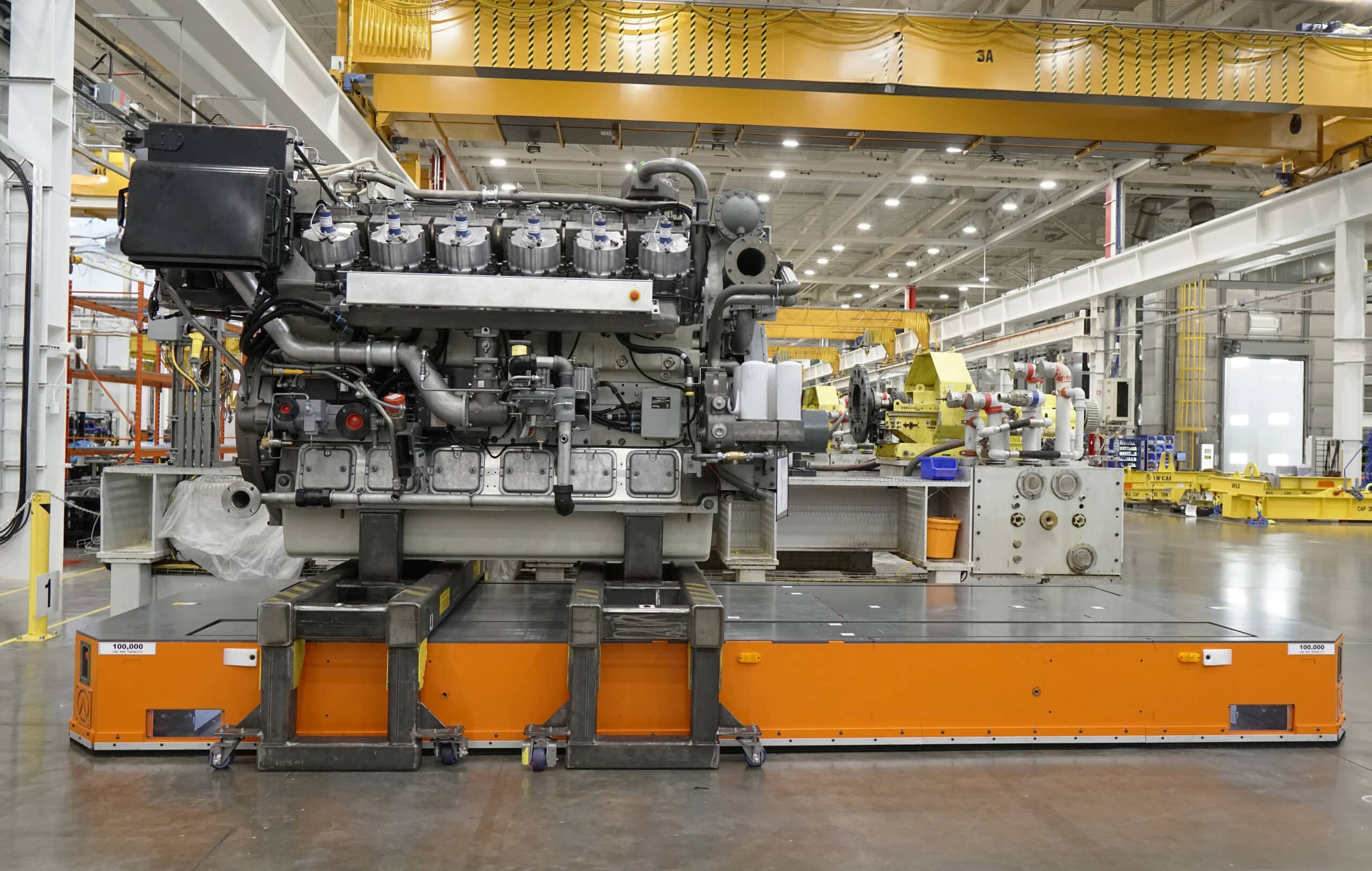

The transporter was deployed into the facility and immediately demonstrated strong performance. During initial operation, the unit ran for over a day and a half—approximately 11–12 hours of active use—while maintaining more than 50% battery charge. Operators were able to move engines smoothly between staging areas and paint operations with improved control and efficiency.

The project also served as a successful R&D milestone for Align Production Systems, expanding internal capabilities for future low-profile transporter designs.

Conclusion

This custom low-profile flatbed transporter enabled the engine manufacturer to modernize their internal engine transport process while overcoming strict height constraints. By combining high capacity, precise maneuverability, and efficient battery performance in an ultra-low design, Align Production Systems delivered a solution that not only solved an immediate challenge but also set the foundation for future innovations in low-profile material handling equipment.
