Automated Guided Vehicles (AGVs) have become essential to modern manufacturing, especially in facilities where efficiency, safety, and uptime are critical. At the core of every successful AGV implementation lies one pivotal decision: the navigation type.
AGVs aren’t one-size-fits-all. How they move through a facility—how they “see,” track, and follow routes—can drastically impact performance, safety, and scalability. That’s why understanding the different navigation systems is crucial when integrating automation into your operation.
Types of AVG Navigation
1. Reflector-Based Navigation
Reflector navigation uses laser scanners (often referred to as LiDAR) to triangulate against reflective targets placed around the facility. This method is highly accurate and well-suited for structured environments with predictable routes.
Best for: Facilities with well-defined paths, minimal layout changes, and the need for high positional accuracy.
2. Natural Feature Navigation
This system relies on onboard sensors to detect walls, columns, and other static features in the environment—no external markers needed. It’s ideal for plants where flexibility is key and layouts change frequently.
Best for: Dynamic environments or growing facilities where routes need to adapt over time.
3. Magnetic Bar Navigation
Align embeds rugged magnetic bars into the floor. The AGV precisely follows this buried path, even in high-traffic or debris-prone environments.
Best for: Heavy-duty or dirty industrial environments requiring long-term durability and low maintenance.
4. QR Code Navigation
QR codes installed at specific locations guide the AGV along its path, ensuring pinpoint accuracy at workstations, docking areas, or transfer points.
Best for: Facilities with repetitive stops or stations benefit from exact positional data.
5. Hybrid Navigation
For complex environments, hybrid systems combine two or more methods—such as reflectors with natural feature mapping—to offer both structure and flexibility.
Best for: Large or evolving operations where flexibility and control are equally important.
How Align Determines the Right Navigation for You
Choosing the right navigation type isn’t just about technology—it’s about understanding your space, workflows, and future goals. Align works closely with our customers to evaluate:
Layout & Facility Conditions
We evaluate your plant’s layout, aisle widths, visibility, flooring type, and existing infrastructure. For example, tight corners may limit magnetic bar use, while open spaces favor reflector or natural navigation.
Load Requirements

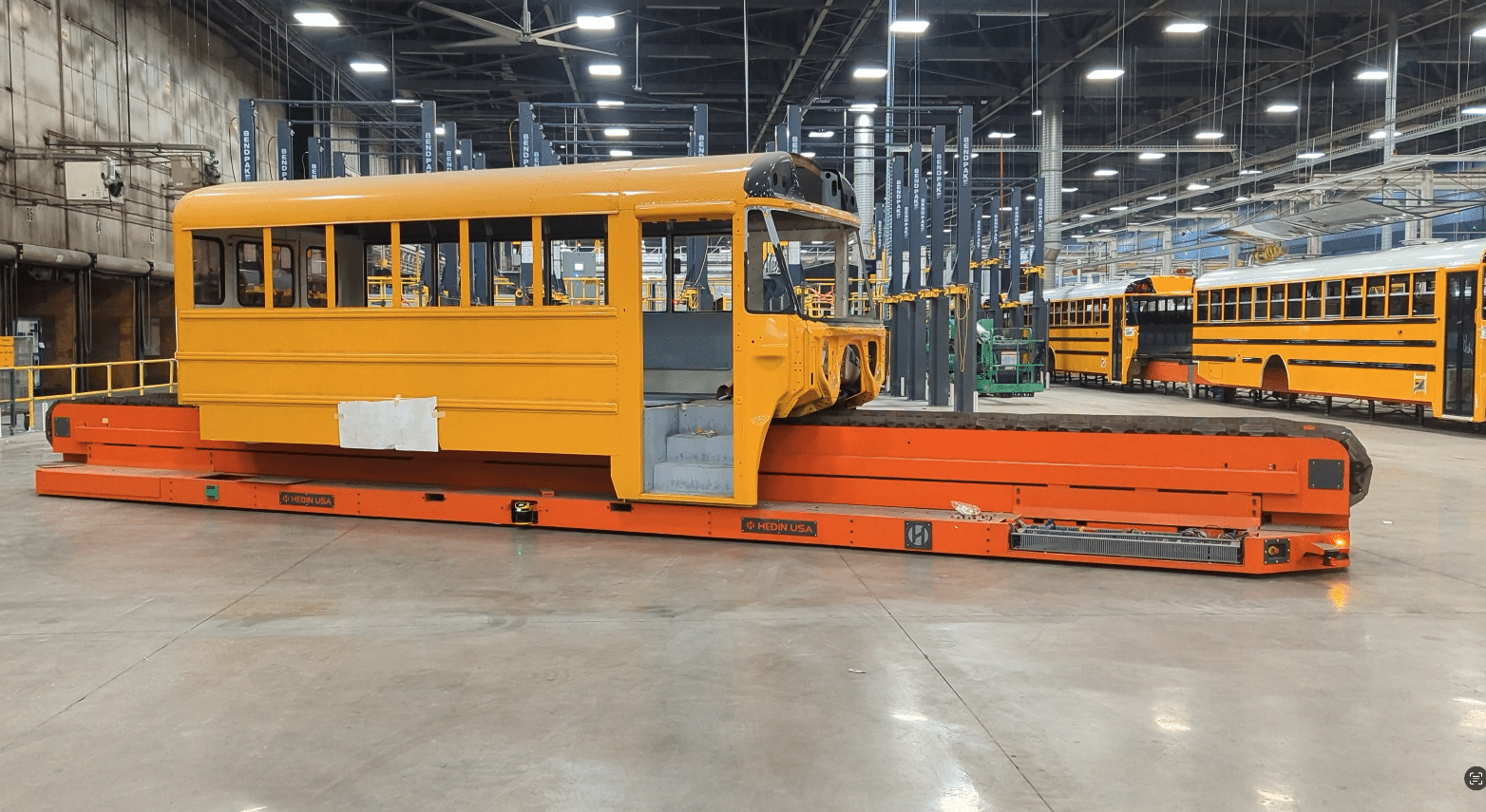

AGVs at Align can handle capacities over one million pounds. This high load capacity calls for consistent, predictable routing—which makes predefined paths critical in many cases.
Change Frequency & Scalability
If your layout changes frequently or your facility is still growing, natural feature or reflector-based systems may offer the flexibility you need. We can make recommendations from your layout changes.
Operational Priorities
Is precision routing essential to avoid collisions with forklifts? Are you prioritizing rapid deployment? Your operational goals help determine the most efficient and cost-effective option.
Supporting Configurable Paths and Future Growth
Modern AGV systems support configurable paths, meaning we can edit, expand, or reroute your AGV layout without major downtime. Adding a new machine? Need to reroute to a new dock or charging station? We can update your system in a day or two—keeping your operation moving.
Final Thoughts
At Align, we believe that navigation is the foundation of any AGV system. Whether you need fixed precision or flexible adaptability, we help you design an AGV strategy that fits your facility today—and scales with you tomorrow.
Ready to build your material movement around automation? Let’s start with the path forward.
