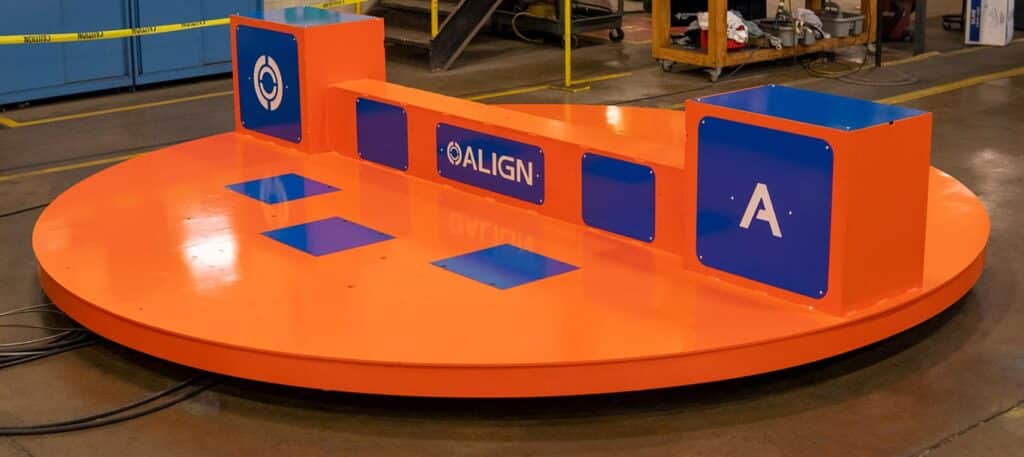

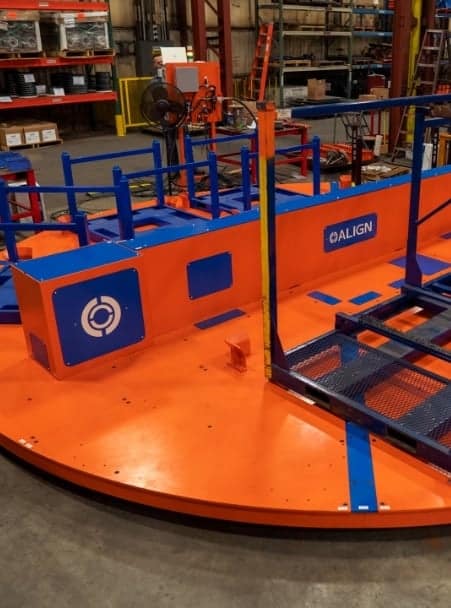

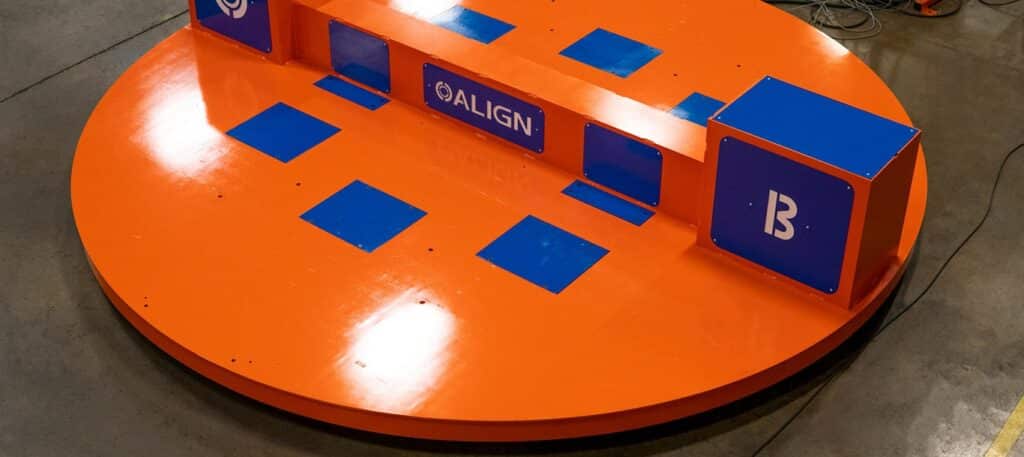

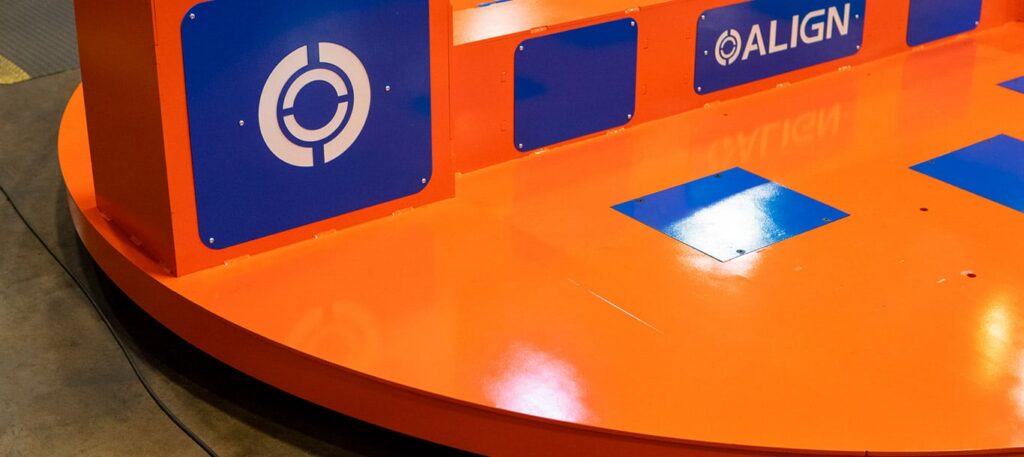

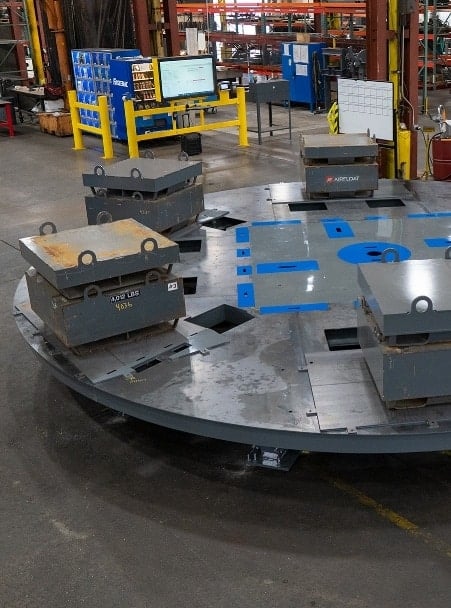

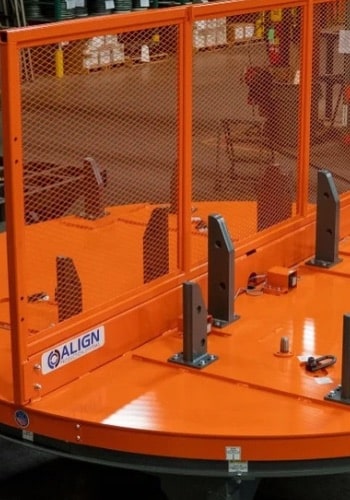

High Speed Air Caster Turntables
The High-Speed Air Caster Turntable, designed for precision and speed in robotic manufacturing, utilizes Airfloat Air Casters for fast, easy rotation with a low-profile design. It continues the workflow in production lines, with simultaneous rack loading and unloading while maintaining safe separation between workers, forklifts, and robotic systems. With standard capacities up to 10,000 lbs, custom capacities, and robotic integration options available, this turntable family is ideal for hitting target cycle times in work cell applications.
View More Photos
Looking for a customized solution? We do that too.
Request a Free Consultation
Product
Common Options
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Base Diameter (in)
Base Diameter (mm)
|
Top Diameter Max (in)
Top Diameter Max (mm)
|
Height (in)
Height (mm)
|
Cycle Time - 180 deg full (seconds)
Cycle Time - 180 deg full (seconds)
|
Air Flow (scfm)
Air Flow (l/m)
|
|---|---|---|---|---|---|---|
|
Model No.
Model No.
AX020-0108
AX020-0108
|
Capacity (lbs)
Capacity (kgs)
10,000
4,536
|
Base Diameter (in)
Base Diameter (mm)
72
1,829
|
Top Diameter Max (in)
Top Diameter Max (mm)
108
2,743
|
Height (in)
Height (mm)
8 3/8
213
|
Cycle Time (180 deg full)
Cycle Time (180 deg full)
6
6
|
Air Flow (scfm)
Air Flow (l/m)
60
1699
|
|
Model No.
Model No.
AX020-0120
AX020-0120
|
Capacity (lbs)
Capacity (kgs)
10,000
4,536
|
Base Diameter (in)
Base Diameter (mm)
84
2,134
|
Top Diameter Max (in)
Top Diameter Max (mm)
120
3,048
|
Height (in)
Height (mm)
9 3/8
213
|
Cycle Time (180 deg full)
Cycle Time (180 deg full)
6.5
6.5
|
Air Flow (scfm)
Air Flow (l/m)
60
1699
|
|
Model No.
Model No.
AX020-0132
AX020-0132
|
Capacity (lbs)
Capacity (kgs)
10,000
4,536
|
Base Diameter (in)
Base Diameter (mm)
96
2,438
|
Top Diameter Max (in)
Top Diameter Max (mm)
132
3,353
|
Height (in)
Height (mm)
10 3/8
213
|
Cycle Time (180 deg full)
Cycle Time (180 deg full)
6.5
6.5
|
Air Flow (scfm)
Air Flow (l/m)
75
2124
|
|
Model No.
Model No.
AX020-0144
AX020-0144
|
Capacity (lbs)
Capacity (kgs)
10,000
4,536
|
Base Diameter (in)
Base Diameter (mm)
108
2,743
|
Top Diameter Max (in)
Top Diameter Max (mm)
144
3,658
|
Height (in)
Height (mm)
11 3/8
213
|
Cycle Time (180 deg full)
Cycle Time (180 deg full)
7
7
|
Air Flow (scfm)
Air Flow (l/m)
75
2124
|
|
Model No.
Model No.
AX020-0156
AX020-0156
|
Capacity (lbs)
Capacity (kgs)
10,000
4,536
|
Base Diameter (in)
Base Diameter (mm)
120
3,048
|
Top Diameter Max (in)
Top Diameter Max (mm)
156
3,962
|
Height (in)
Height (mm)
12 3/8
213
|
Cycle Time (180 deg full)
Cycle Time (180 deg full)
7
7
|
Air Flow (scfm)
Air Flow (l/m)
75
2124
|
Common Options
Measurement Units
|
Model No.
Model No.
|
Description
Description
|
|---|---|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Custom Controls Package
Custom Controls Package
|
|
Model No.
Model No.
AX5011-XXXX
AX5011-XXXX
|
Description
Description
Basic Control Stand
Basic Control Stand
|
|
Model No.
Model No.
AX5040-XXXX
AX5040-XXXX
|
Description
Description
Auxillary Control Stand
Auxillary Control Stand
|
|
Model No.
Model No.
AX5081-XXXX
AX5081-XXXX
|
Description
Description
Robotic Interface Control Stand
Robotic Interface Control Stand
|
|
Model No.
Model No.
APS5000-XXXX
APS5000-XXXX
|
Description
Description
Dirt Leg
Dirt Leg
|
|
Model No.
Model No.
AX5054-XXXX
AX5054-XXXX
|
Description
Description
Center Fence - Screen
Center Fence - Screen
|
|
Model No.
Model No.
AX5055-XXXX
AX5055-XXXX
|
Description
Description
Center Fence - Solid
Center Fence - Solid
|
|
Model No.
Model No.
AX5056-XXXX
AX5056-XXXX
|
Description
Description
Center Fence - Polycarbonate
Center Fence - Polycarbonate
|
|
Model No.
Model No.
AX5060-XXXX
AX5060-XXXX
|
Description
Description
Riser Base
Riser Base
|
|
Model No.
Model No.
AX5090-XXXX
AX5090-XXXX
|
Description
Description
Slip Ring
Slip Ring
|
|
Model No.
Model No.
AX5091-XXXX
AX5091-XXXX
|
Description
Description
Rotary Union
Rotary Union
|
|
Model No.
Model No.
AX5092-XXXX
AX5092-XXXX
|
Description
Description
Slip Ring Union
Slip Ring Union
|
|
Model No.
Model No.
AX5093-XXXX
AX5093-XXXX
|
Description
Description
Central Grounding
Central Grounding
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Audible/Visual Alarm
Audible/Visual Alarm
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Safety Guarding
Safety Guarding
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Lead-Ins
Lead-Ins
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Scraper Bar
Scraper Bar
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Corner Angles
Corner Angles
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Conical Locators
Conical Locators
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Error Proofing Pin
Error Proofing Pin
|
|
Model No.
Model No.
Custom
Custom
|
Description
Description
Rack Present Sensors
Rack Present Sensors
|
Overcome Obstacles.
Maximize Production.
Maximize Production.
Request a Quote
Fast Rotation
Quick Rotation
With 180° cycle times as low as 6 seconds, High Speed Air Caster Turntables are as high speed as it gets. You’ll have zero problem keeping production lines moving and your work cells will be as fast as they’ve ever been. The solution for fast pace environments.
Low Maintenance
Air Caster technology floats heavy loads on a cushion of air, reducing friction and allowing easy rotation with minimal force. With fewer moving parts for less wear, maintenance is simplified with slide-out trays for easy air bearing replacement.
Improved Safety

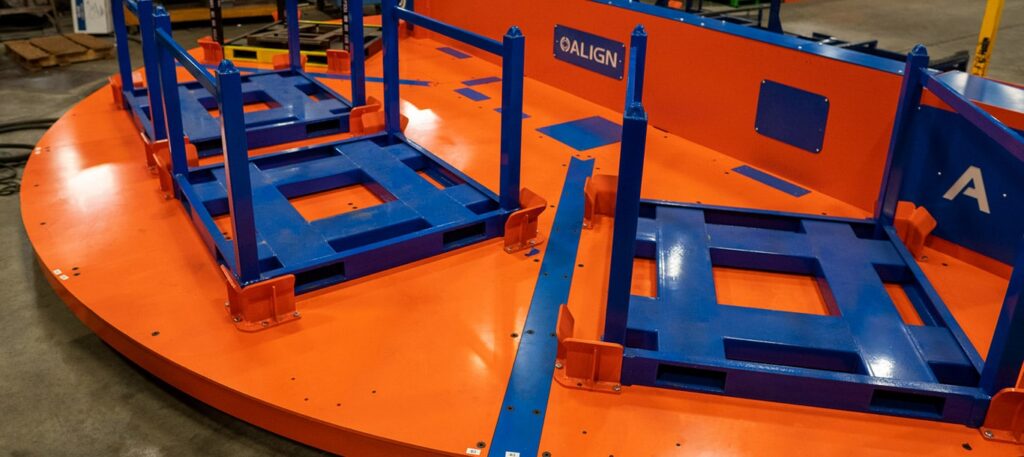

With Air Caster Turntables, while one side is being loaded up with a product or material, the other side can be unloaded by a robot or forklift - keeping workers at a safe distance from forklift activity. Center fencing options available for additional safety.

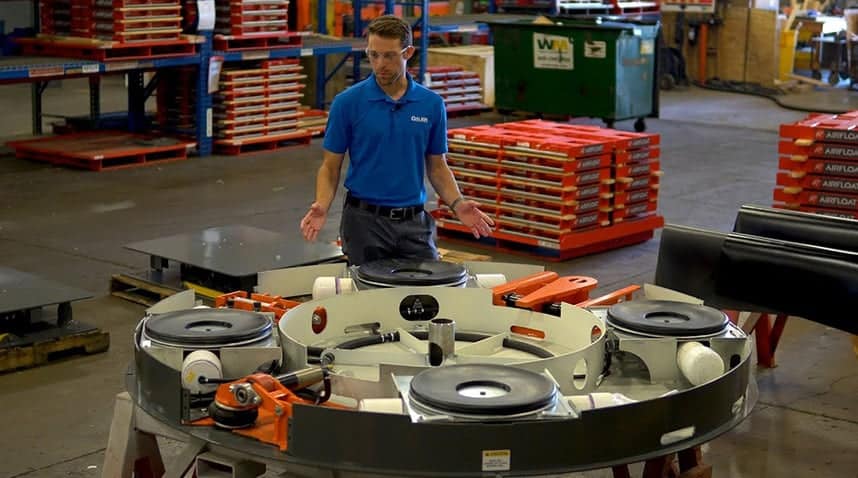

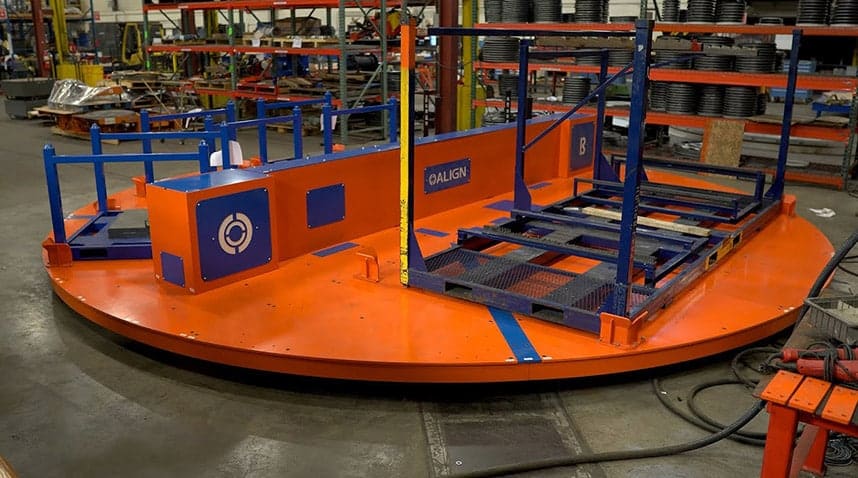

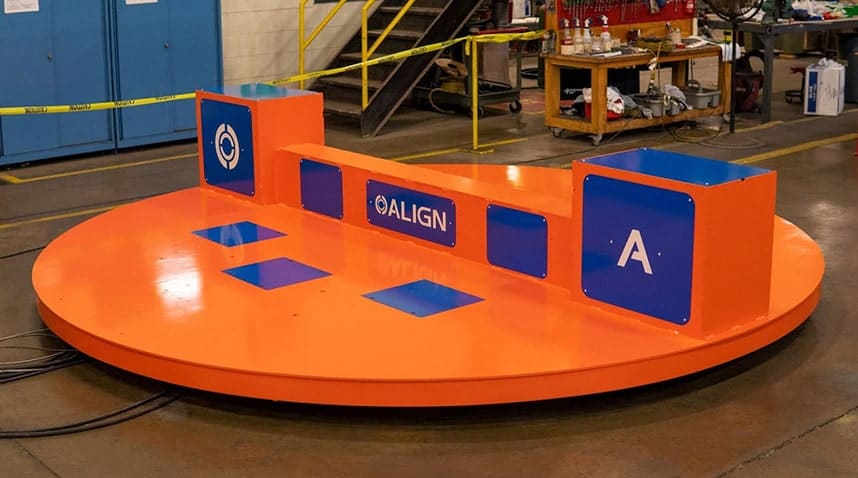

Video Library : Demo & Application
What kind of maintenance should I expect for the High Speed Air Caster Turntables?
Air Caster technology floats the load on a cushion of air, significantly reducing friction and allowing heavy loads to be rotated with minimal force. Because the Air Caster does most of the work, our tables require few moving parts and experience minimal wear and tear.
When maintenance is needed, our turntables feature slide-out trays for easy access to components. Regular maintenance, as outlined in the manual, and using the proper air settings with a clean and dry air supply, will prolong the lifespan.
What is the difference between the Round Air Caster Turntable and the High Speed Air Caster Turntable?
The main difference is cycle time. The Round Air Caster Turntable can have a cycle time as low as 10 seconds, while the High-Speed Air Caster Turntable can have a cycle time as low as 6 seconds. In addition to cycle time, the capacities and height of the turntable also differ to accommodate faster cycle time for the high-speed turntable.
How easy is it to repair or perform maintenance on the High Speed Air Caster Turntable?
We designed our High Speed Air Caster Turntables to make it simple and quick to replace all internal components stored in the center housing; such as the drive, the shot pin.
What is the capacity of each side of the High Speed Air Caster Turntable?
With a total capacity of 10,000 lbs., each side of the turntable can hold up to 5,000 lbs. Higher capacity variants are available upon request and can be designed by our Engineers.
