Mechanical Rotates

Rotate Heavy Loads

Align Mechanical Rotates allow for you to easily rotate parts containers or other heavy loads.

Mechanical Rotates

Specs & Sizing

Features

Video Library

Mechanical Rotates

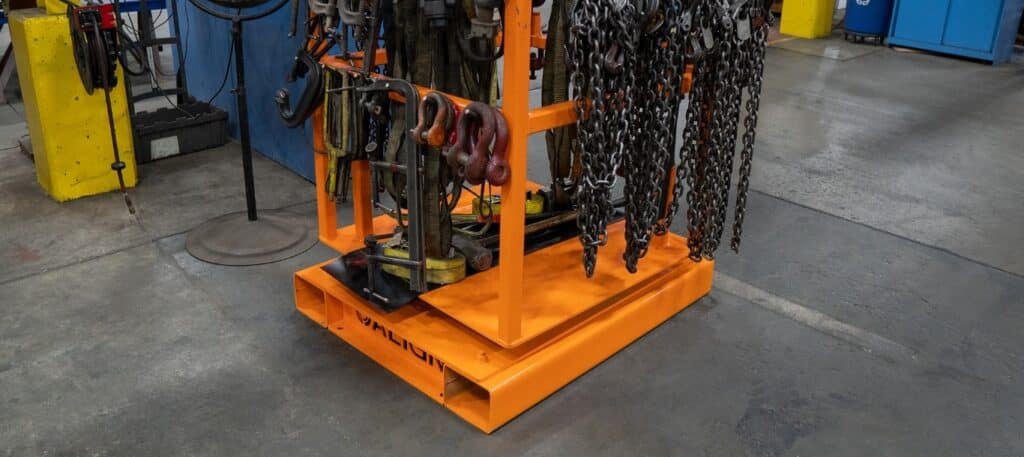

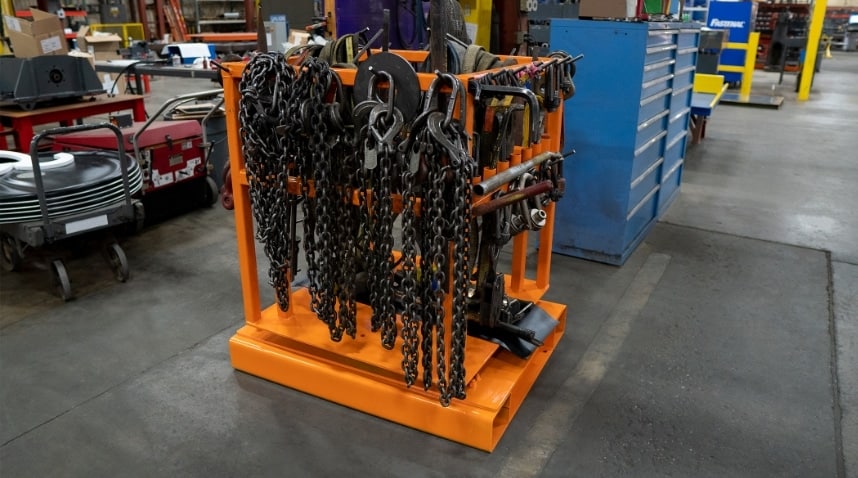

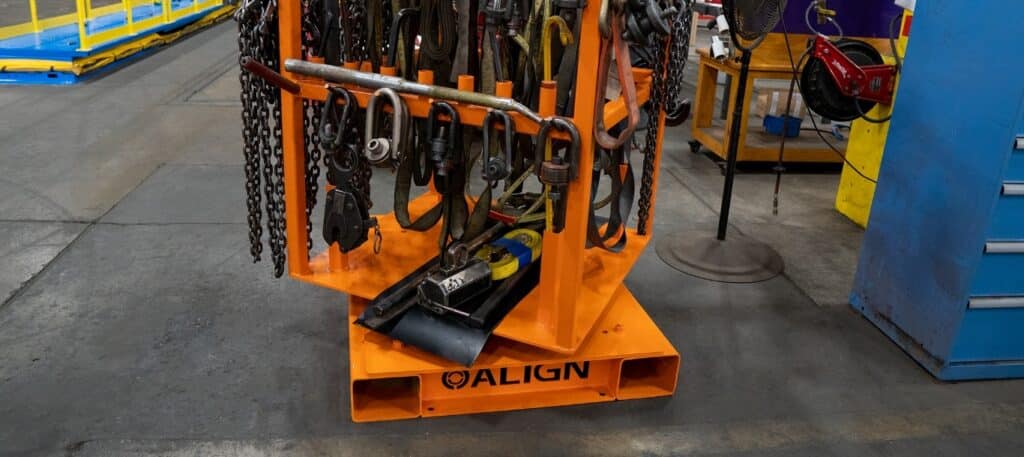

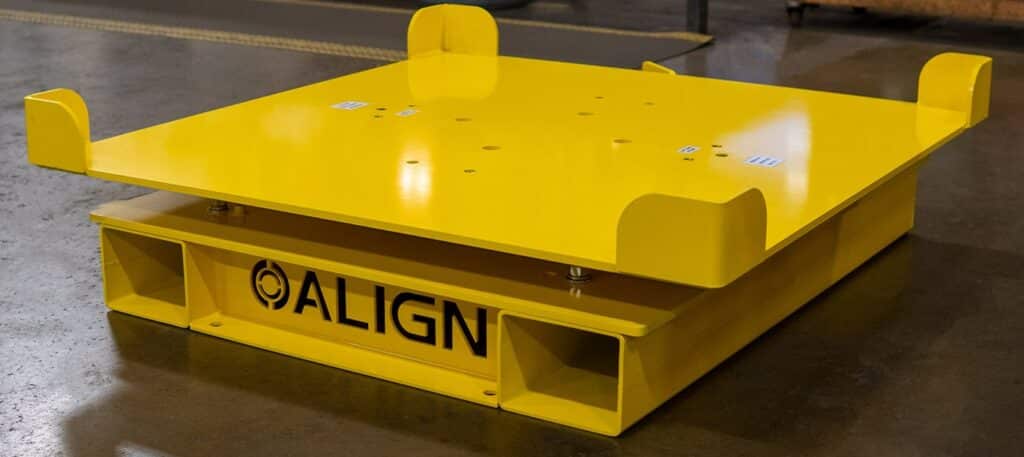

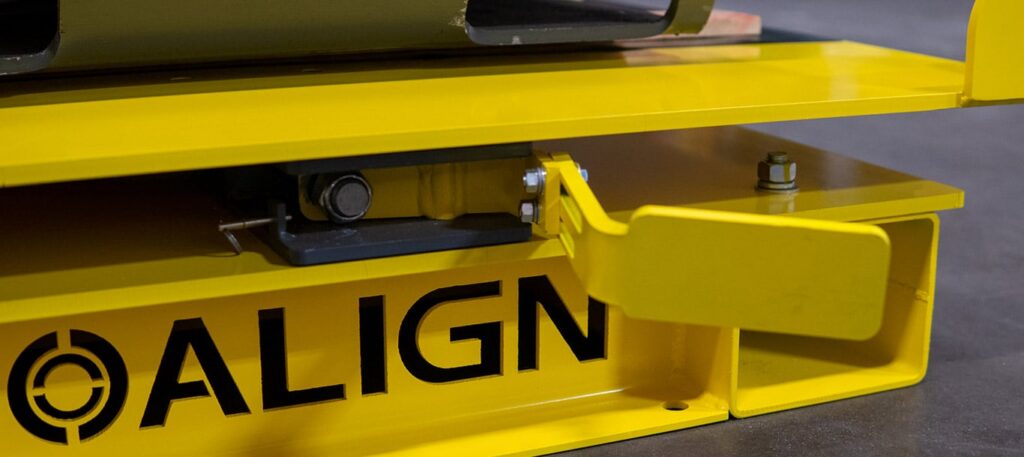

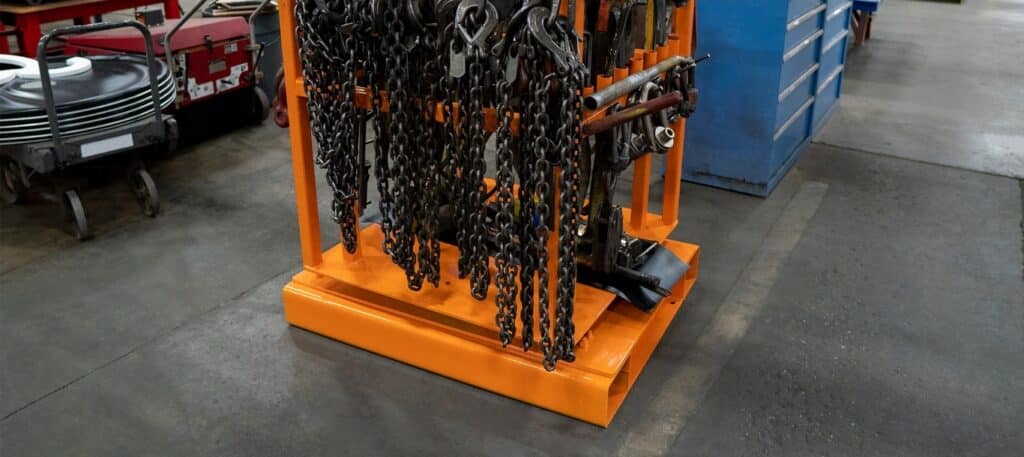

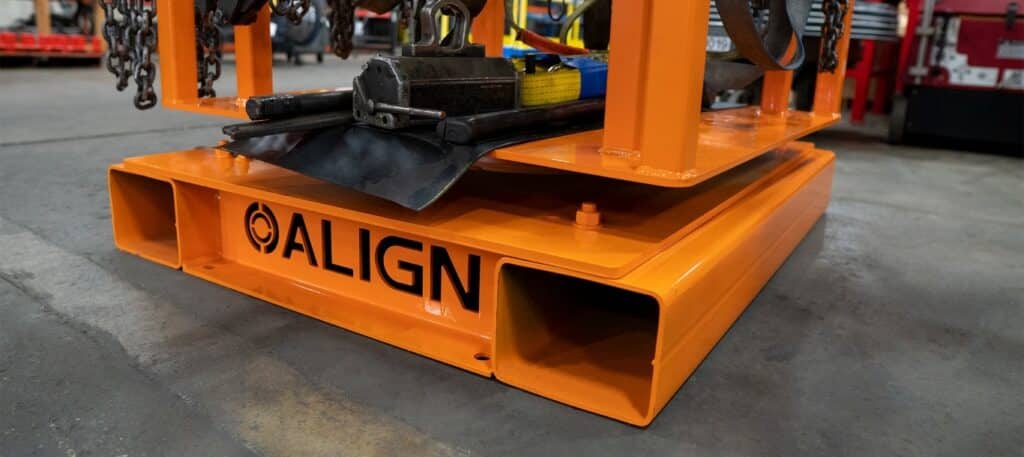

Offering bolt-on or standalone operation, our rotates use sealed, lubricated-for-life slewing bearings that are superior to cheaper wheels or cam rollers. The Mechanical Rotates are built to withstand the demands of manufacturing and are easy and safe to implement. Our Mechanical Rotates are available in a range of top sizes with capacities of thousands of pounds and our low profile design at just 4″ high. Other options include Pneumatic friction brakes, 90° and 180° spring lock pin, riser base with fork pockets, and corner locators to hold the container in place. In addition to standalone operation, our lift tables can be integrated into a solution with our lift tables or tilt tables.

View Gallery

Gallery

Mechanical Rotate Gallery

View Media Gallery

Product

Common Options

Measurement Units

Model No. Model No.	Capacity (lbs) Capacity (kgs)	Base Length (in) Base Length (mm)	Base Width (in) Base Width (mm)	Max Length (in) Max Length (mm)	Max Width (in) Max Width (mm)	Height (in) Height (mm)	Bearing Type Bearing Type
Model No. Model No. ST030-XXXX ST030-XXXX	Capacity (lbs) Capacity (kgs) 4,000 1,814	Base Length (in) Base Length (mm) 42 1	Base Width (in) Base Width (mm) 42 1	Max Length (in) Max Length (mm) 38 965	Max Width (in) Max Width (mm) 38 965	Height (in) Height (mm) 4 102	Bearing Type Bearing Type Slewing Slewing
Model No. Model No. ST031-XXXX ST031-XXXX	Capacity (lbs) Capacity (kgs) 4,000 1,814	Base Length (in) Base Length (mm) 42 1	Base Width (in) Base Width (mm) 42 1	Max Length (in) Max Length (mm) 39 965	Max Width (in) Max Width (mm) 39 965	Height (in) Height (mm) 4 102	Bearing Type Bearing Type Cam Follower Cam Follower

Common Options

Measurement Units

Model No. Model No.	Description Description
Model No. Model No. ST5060-010 ST5060-010	Description Description Pneumatic Friction Brake Hand Pneumatic Friction Brake Hand
Model No. Model No. ST5060-020 ST5060-020	Description Description Pneumatic Friction Brake Foot Pneumatic Friction Brake Foot
Model No. Model No. ST5060-030 ST5060-030	Description Description 90° Spring Lock Pin 90° Spring Lock Pin
Model No. Model No. ST5060-040 ST5060-040	Description Description 180° Spring Lock Pin 180° Spring Lock Pin
Model No. Model No. ST5070-0010 ST5070-0010	Description Description Corner Angle Corner Angle
Model No. Model No. ST5080-0011 ST5080-0011	Description Description 10” Riser Base / Fork Pockets 10” Riser Base / Fork Pockets

Looking for a customized solution? We do that too.

Request a Free Consultation

Combination
& Compatibility

As with all of ergonomic equipment, the Mechanical Rotate can be combined with other Align equipment such as Tilt Tables, Lift Tables, Turntables, and Conveyors to create the ultimate solution to your application.

Ergonomics
& Comfort

By always keeping your workers in the ergonomic window, operations are smoother and more comfortable for the operator. Parts, products, and other pieces are presented in a comfortable position, eliminating the need for workers to strain their body.

Benefits of
Mechanical Rotates

Various benefits of using Mechanical Rotates include increased productivity, low initial cost and maintenance, work positioning and ergonomics handling, as well as simple design and easy installation.
