Pneumatic Tilt Tables

Lift & Tilt

Our Pneumatic Tilt Tables are designed for stand-alone use or with bolt-on configurations with other equipment like our pneumatic lift and mechanical rotates.
Our Pneumatic Tilt Tables are designed for stand-alone use or with bolt-on configurations with other equipment like our pneumatic lift and mechanical rotates.
slider-left-arrow
slider-left-arrow
Specs & Sizing
Features
Video Library

Pneumatic Tilt Tables

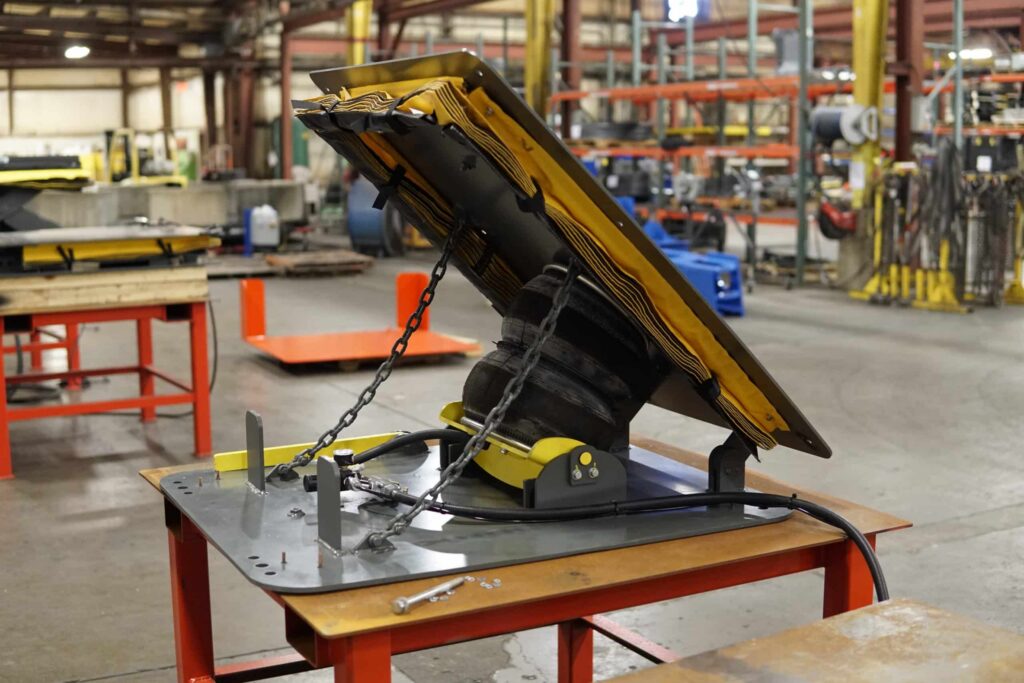

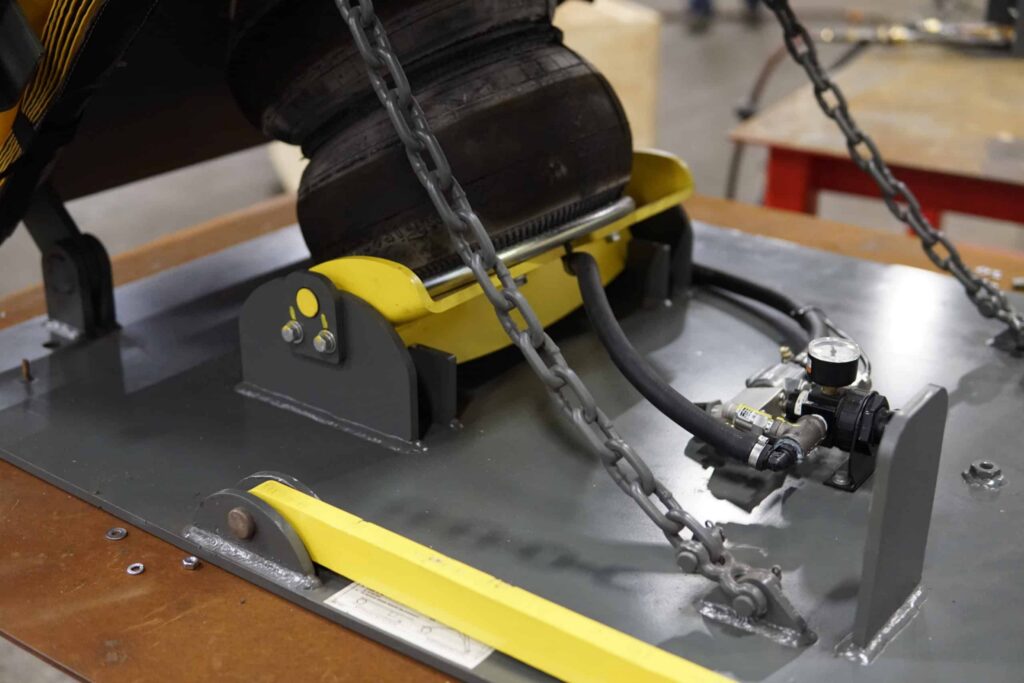

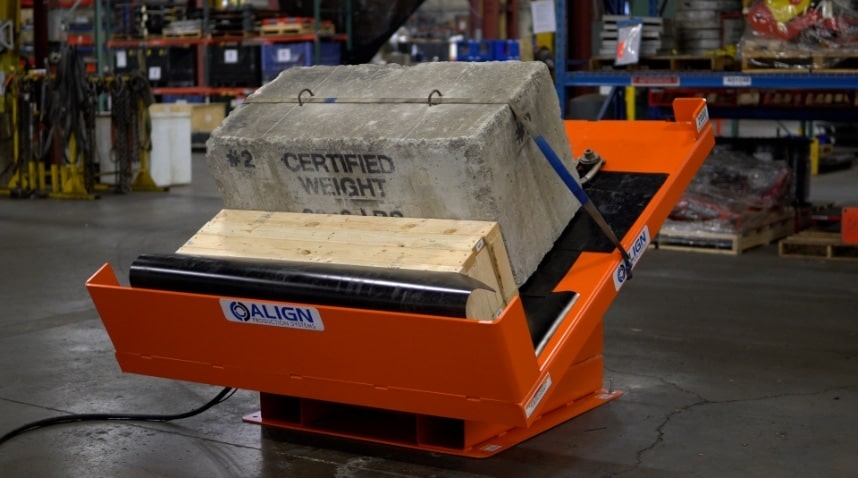

Standard pneumatic tilt tables are available in a range of top sizes at 30° or 45° angles and can position loads that weight thousands of pounds. Safety features include a toe kick plate, two up-stop chains per actuator, a safety prop for maintenance, corner retainer, debris skirt, and enclosed base pan to protect internal components. As with all our ergonomic equipment, the Pneumatic Tilt is compatible with our Lift Tables and Rotates.
View More Photos
Looking for a customized solution? We do that too.
Request a Free Consultation
Product
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Base Length (in)
Base Length (mm)
Base Width (in)
Base Width (mm)
Top Length Max (in)
Top Length Max (mm)
Top Length Min (in)
Top Length Min (mm)
Top Width Max (in)
Top Width Max (mm)
Top Width Min (in)
Top Width Min (mm)
Height (in)
Height (mm)
Tilt Angle (deg)
Tilt Angle (deg)
Model No.
Model No.
ST072-XXXX
ST072-XXXX
Capacity (lbs)
Capacity (kgs)
4,000
1,814
Base Length (in)
Base Length (mm)
50
1,270
Base Width (in)
Base Width (mm)
42
1,067
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
50
1,270
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
44
1,117
Height (in)
Height (mm)
7
178
Tilt Angle (deg)
Tilt Angle (deg)
30°
30°
Model No.
Model No.
ST070-XXXX
ST070-XXXX
Capacity (lbs)
Capacity (kgs)
2,000
907
Base Length (in)
Base Length (mm)
48
1,219
Base Width (in)
Base Width (mm)
36
914
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
50
1,270
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
44
1,117
Height (in)
Height (mm)
7
178
Tilt Angle (deg)
Tilt Angle (deg)
30°
30°
Model No.
Model No.
ST023-XXXX
ST023-XXXX
Capacity (lbs)
Capacity (kgs)
4,000
1,814
Base Length (in)
Base Length (mm)
48
1,219
Base Width (in)
Base Width (mm)
42
1,067
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
44
1,118
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
44
1,118
Height (in)
Height (mm)
7
178
Tilt Angle (deg)
Tilt Angle (deg)
45°
45°
Model No.
Model No.
ST021-XXXX
ST021-XXXX
Capacity (lbs)
Capacity (kgs)
2,000
907
Base Length (in)
Base Length (mm)
44
1,118
Base Width (in)
Base Width (mm)
36
914
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
44
1,118
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
44
1,118
Height (in)
Height (mm)
7
178
Tilt Angle (deg)
Tilt Angle (deg)
45°
45°
Model No.
Model No.
ST024-XXXX
ST024-XXXX
Capacity (lbs)
Capacity (kgs)
6,000
2,721
Base Length (in)
Base Length (mm)
48
1,219
Base Width (in)
Base Width (mm)
48
1,219
Top Length Max (in)
Top Length Max (mm)
62
1,575
Top Length Min (in)
Top Length Min (mm)
50
1,270
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
50
1,270
Height (in)
Height (mm)
6
152
Tilt Angle (deg)
Tilt Angle (deg)
30°
30°
Model No.
Model No.
ST022-XXXX
ST022-XXXX
Capacity (lbs)
Capacity (kgs)
4,000
1,814
Base Length (in)
Base Length (mm)
44
1,118
Base Width (in)
Base Width (mm)
36
914
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
44
1,118
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
44
1,118
Height (in)
Height (mm)
6
152
Tilt Angle (deg)
Tilt Angle (deg)
30°
30°
Model No.
Model No.
ST025-XXXX
ST025-XXXX
Capacity (lbs)
Capacity (kgs)
6,000
2,721
Base Length (in)
Base Length (mm)
48
1,219
Base Width (in)
Base Width (mm)
48
1,219
Top Length Max (in)
Top Length Max (mm)
62
1,575
Top Length Min (in)
Top Length Min (mm)
50
1,270
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
50
1,270
Height (in)
Height (mm)
7
178
Tilt Angle (deg)
Tilt Angle (deg)
45°
45°
Model No.
Model No.
ST020-XXXX
ST020-XXXX
Capacity (lbs)
Capacity (kgs)
2,000
907
Base Length (in)
Base Length (mm)
44
1,118
Base Width (in)
Base Width (mm)
36
914
Top Length Max (in)
Top Length Max (mm)
56
1,422
Top Length Min (in)
Top Length Min (mm)
44
1,118
Top Width Max (in)
Top Width Max (mm)
62
1,575
Top Width Min (in)
Top Width Min (mm)
38
965
Height (in)
Height (mm)
6
152
Tilt Angle (deg)
Tilt Angle (deg)
30°
30°
Overcome Obstacles.
Maximize Production.
Request a Quote
Combination
& Compatibility

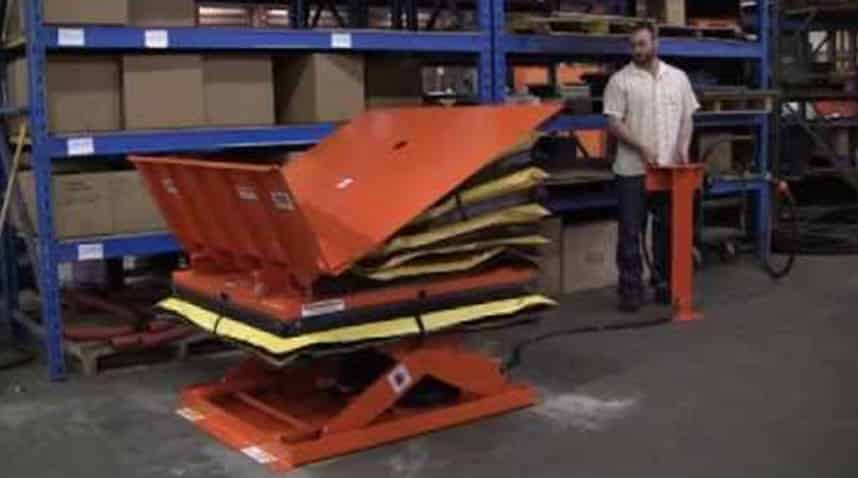

As with all of ergonomic equipment, the Pneumatic Tilt can be combined with other Align equipment such as Lift Tables, Mechanical Rotates, Turntables, and Conveyors to create the ultimate solution to your application.
Ergonomics
& Comfort
By always keeping your workers in the ergonomic window, operations are smoother and more comfortable for the operator. Parts, products, and other pieces are presented at a comfortable height, eliminating the need for workers to strain their backs.
Maintenance
& Efficiency
By using Rulon bushings, we’re able to provide superior operating life to our competitors by allowing the tables to be self-lubricating - creating minimal downtime and almost eliminating maintenance.

Video Library : Demo & Application

next-button next-button-hover
next-button next-button-hover



Frequent Questions
What maintenance should I expect with Align’s ergonomic equipment?

Our Lifts & Tilts use Rulon Bushings that provide longer wear and extended operating life with a self-lubricating design. Combining these Bushings with our high quality steel creates a long lasting piece of equipment with minimal maintenance.

How can I use the different ergonomic equipment together?

Our equipment can be used in many configurations such as Lift & Tilt, Lift & Rotate, and Lift, Tilt, and & Rotate Tables.
