Our Hydraulic Lift tables meet the ANSI MH29.1-2012 design standards and are built to withstand the demands of manufacturing and are easy and safe to implement.
Our Hydraulic Lift tables meet the ANSI MH29.1-2012 design standards and are built to withstand the demands of manufacturing and are easy and safe to implement.
Hydraulic Lift Tables
Specs & Sizing
Features
Video Library

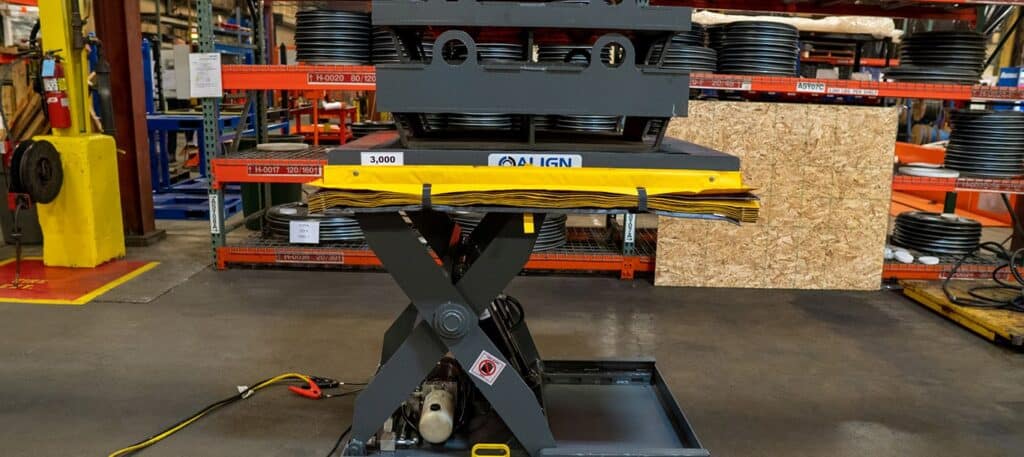

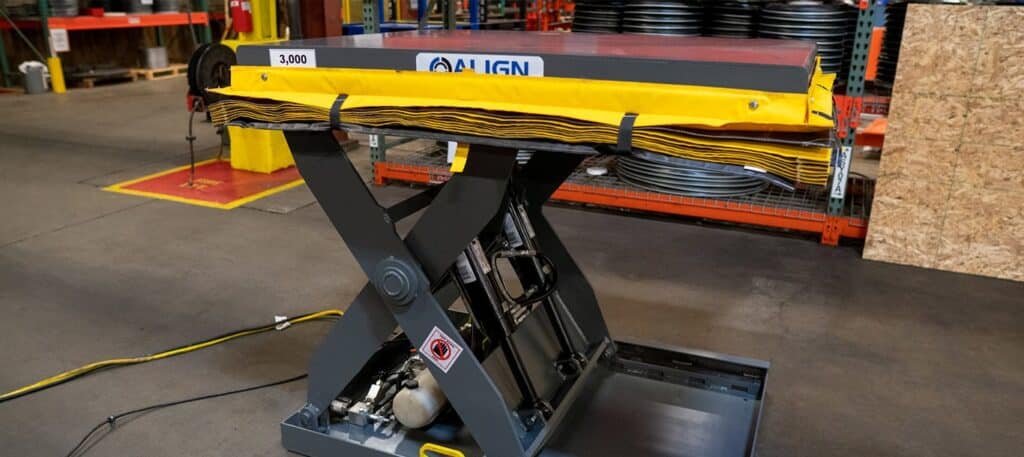

Hydraulic Lift Tables
Standard Hydraulic Lifts are available in a range of top sizes, stroke, down heights, and capacities. All of our tables feature solid steel cross arms, and are CAD designed and engineered for optimum performance, strength, and durability unsurpassed in the industry. In addition to standalone operation, our lift tables can be integrated into a solution with our tilt tables or mechanical rotates.
View More Photos
Looking for a customized solution? We do that too.
Request a Free Consultation
Product
Common Options
Measurement Units
|
Model No.
Model No.
|
Capacity (lbs)
Capacity (kgs)
|
Base Length (in)
Base Length (mm)
|
Base Width (in)
Base Width (mm)
|
Top Length (in)
Top Length (mm)
|
Top Width (in)
Top Width (mm)
|
Down Height (in)
Down Height (mm)
|
Raised Height (in)
Raised Height (mm)
|
Stroke (in)
Stroke (mm)
|
|---|---|---|---|---|---|---|---|---|
|
Model No.
Model No.
ST051-3648
ST051-3648
|
Capacity (lbs)
Capacity (kgs)
4,000
1,814
|
Base Length (in)
Base Length (mm)
48
1,219
|
Base Width (in)
Base Width (mm)
36
914
|
Top Length (in)
Top Length (mm)
48
1,219
|
Top Width (in)
Top Width (mm)
36
914
|
Down Height (in)
Down Height (mm)
9
229
|
Raised Height (in)
Raised Height (mm)
41
1,041
|
Stroke
Stroke
32
813
|
|
Model No.
Model No.
ST053-3648
ST053-3648
|
Capacity (lbs)
Capacity (kgs)
8,000
3,629
|
Base Length (in)
Base Length (mm)
50
1,270
|
Base Width (in)
Base Width (mm)
48
1,219
|
Top Length (in)
Top Length (mm)
48
1,219
|
Top Width (in)
Top Width (mm)
48
1,219
|
Down Height (in)
Down Height (mm)
14
356
|
Raised Height (in)
Raised Height (mm)
48
1,219
|
Stroke
Stroke
32
813
|
Common Options
Measurement Units
|
Model No.
Model No.
|
Description
Description
|
|---|---|
|
Model No.
Model No.
ST5010
ST5010
|
Description
Description

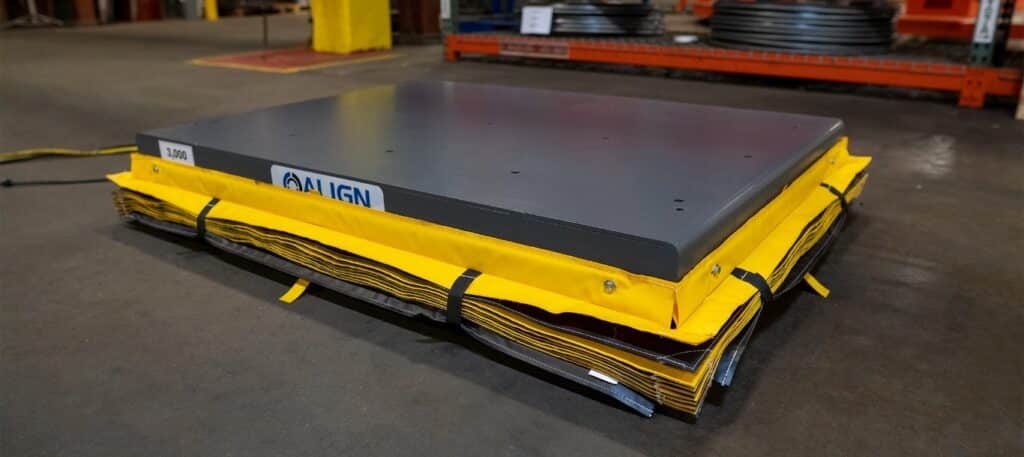

Hydraulic Lift Skirt
Hydraulic Lift Skirt
|
|
Model No.
Model No.
ST5090-0010
ST5090-0010
|
Description
Description
Hydraulic Lift Hand Control
Hydraulic Lift Hand Control
|
|
Model No.
Model No.
ST5090-0020
ST5090-0020
|
Description
Description
Hydraulic Lift Foot Control
Hydraulic Lift Foot Control
|
|
Model No.
Model No.
ST5090-0030
ST5090-0030
|
Description
Description
Power Supply 24V DC
Power Supply 24V DC
|
|
Model No.
Model No.
ST5090-0040
ST5090-0040
|
Description
Description
Power Supply 110 VAC
Power Supply 110 VAC
|
|
Model No.
Model No.
ST5090-0050
ST5090-0050
|
Description
Description
Power Supply 480 VAC
Power Supply 480 VAC
|
Overcome Obstacles.
Maximize Production.
Maximize Production.
Request a Quote
Combination
& Compatibility
& Compatibility
As with all of ergonomic equipment, our Hydraulic Lift can be combined with other Align equipment such as Tilt Tables, Mechanical Rotates, Turntables, and Conveyors to create the ultimate solution to your application.
Ergonomics
& Comfort
& Comfort
As with all of ergonomic equipment, our Hydraulic Lift can be combined with other Align equipment such as Tilt Tables, Mechanical Rotates, Turntables, and Conveyors to create the ultimate solution to your application.
Maintenance
& Efficiency
& Efficiency
By using Rulon bushings, we’re able to provide superior operating life to our competitors by allowing the tables to be self-lubricating - creating minimal downtime and almost eliminating maintenance.

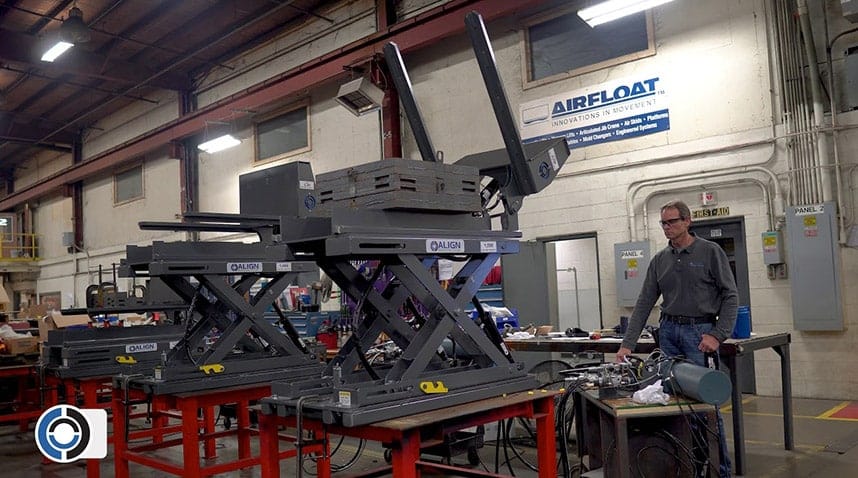

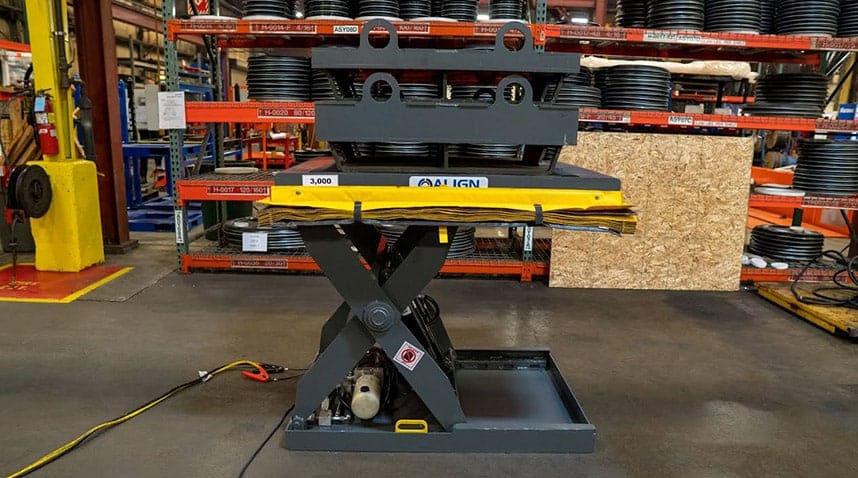

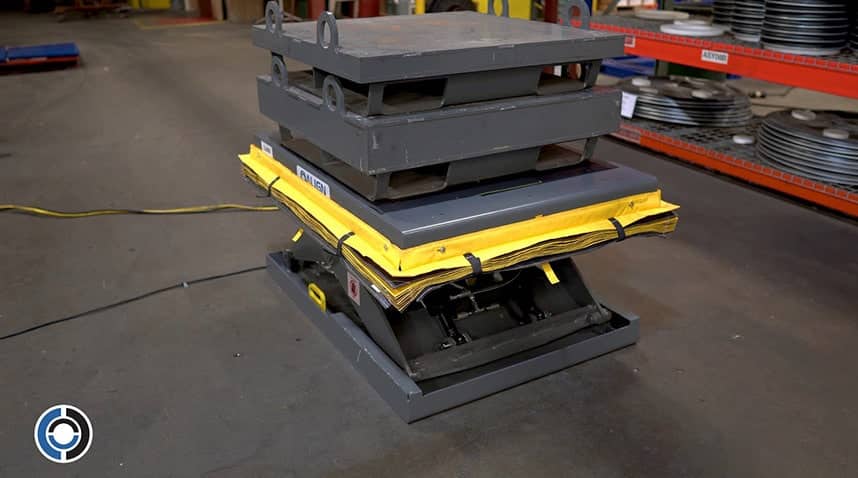

Video Library : Demo & Application
Frequent Questions
What maintenance should I expect with Align’s ergonomic equipment?
Our Lifts & Tilts use Rulon Bushings that provide longer wear and extended operating life with a self-lubricating design. Combining these Bushings with our high quality steel creates a long lasting piece of equipment with minimal maintenance.
How can I use the different ergonomic equipment together?
Our equipment can be used in many configurations such as Lift & Tilt, Lift & Rotate, and Lift, Tilt, and & Rotate Tables.
